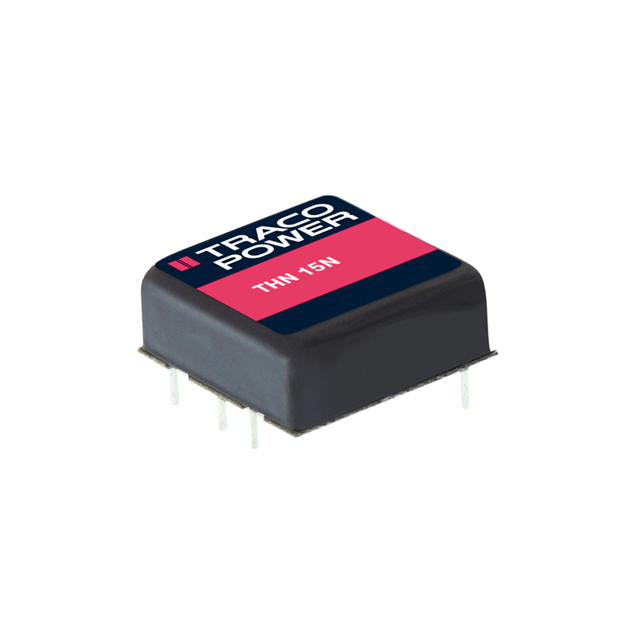

THN 15-4823N Real Image
Same model may have multiple batches, images only for reference.

THN 15-4823N

Part No THN 15-4823N
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 15W / Isolated Module DC DC Converter 2 Output 15V -15V 500mA, 500mA 36V - 75V Input
Datasheet
THN 15-4823N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 500mA, 500mA
Power (Watts) 15 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 89%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number THN 15
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number THN15-4823NINACTIVE,1951-3295,THN15-4823N-ND,THN15-4823N
Standard Package 10
Win Source Part Number 1336004-THN 15-4823N
Ultra Librarian 3D Model Ultra Librarian THN 15-4823N CAD Model

Description

The THN 15-4823N is a 15W isolated DC-DC converter module designed for use in commercial ITE applications.

  • Number of Outputs: Two
  • Maximum Output Current: 500mA each
  • Input Voltage Range: 36V to 75V
  • Output Voltage: 15V and -15V
  • Voltage Isolation: 1.6 kV
  • Features: Remote on/off, overcurrent protection (OCP), overvoltage protection (OVP), and short circuit protection (SCP)
  • Mounting Package: Through-hole mounting package
  • Size: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
  • Efficiency: 89%
  • Operating Temperature Range: -40°C to 105°C (with derating)
  • Manufacturer: Traco Power
  • RoHS: ROHS3 compliant
