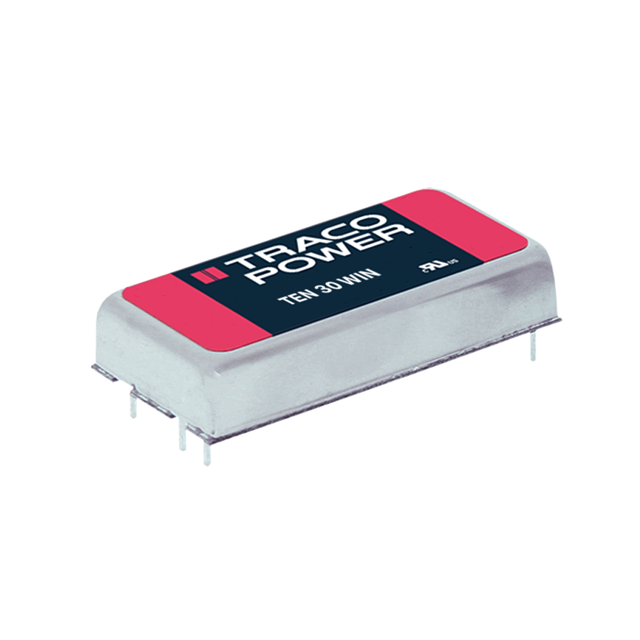

TEN 30-2423WIN Real Image
Same model may have multiple batches, images only for reference.

TEN 30-2423WIN

Part No TEN 30-2423WIN
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 30W / Isolated Module DC DC Converter 2 Output 15V -15V 1A, 1A 9V - 36V Input
Datasheet
TEN 30-2423WIN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 1A, 1A
Power (Watts) 30 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 87%
Mounting Through Hole
Case / Package 7-DIP Module, 6 Leads
Size / Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package Module
Base Product Number TEN 30
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-1544
Standard Package 10
Win Source Part Number 1335685-TEN 30-2423WIN
Ultra Librarian 3D Model Ultra Librarian TEN 30-2423WIN CAD Model

Description

The Traco Power TEN 30-2423WIN is an isolated module DC-DC converter.

  • Packaging: tube packaging
  • Applications: ITE (Commercial) applications
  • Size: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
  • Power: 30 W
  • Outputs: two
  • Maximum Output Current: 1A, 1A
  • Input Voltage Range: 9V to 36V
  • Voltage Isolation: 1.5 kV
  • Features: remote On/Off, OCP, OTP, OVP, SCP, and UVLO
  • Efficiency: 87%
  • Mounting: through-hole mounted
  • ROHS3: compliant
  • ECCN: EAR99
