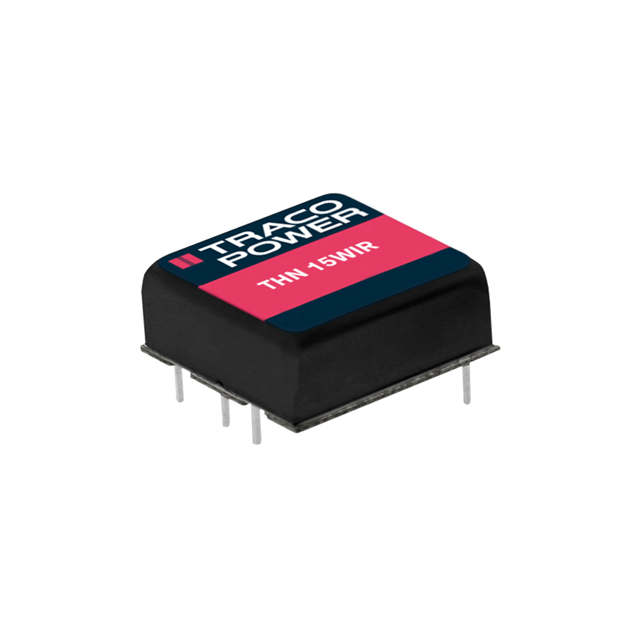

THN 15-4815WIR

Name: THN 15-4815WIR
Brand: Traco Power
SKU: 1335984
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	THN 15-4815WIR
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 24V 15W / Isolated Module DC DC Converter 1 Output 24V 625mA 18V - 75V Input
Datasheet	THN 15-4815WIR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	24V
Current - Output (Max)	625mA
Power (Watts)	15 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial), Railway
Features	Remote On/Off, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 90°C (With Derating)
Efficiency	91%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number	THN 15
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	THN 15-4815WIR-ND,THN15-4815WIR
Standard Package	10
Win Source Part Number	1335984-THN 15-4815WIR
Ultra Librarian 3D Model	Ultra Librarian THN 15-4815WIR CAD Model

Alternative Products

Description

The THN 15-4815WIR is an electronic component from Traco Power.

Product Type: DC DC converter
Module Type: Isolated module
Package: Tube
Standard Package: 10
Size/Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Power: 15 W
Voltage Isolation: 3 kV
Current Output (Max): 625mA
Voltage Input Range: 18V to 75V
Voltage Output 1: 24V
Efficiency: 91%
Features: Remote on/off, OVP, SCP, and UVLO
Application: ITE (Commercial) and Railway applications
Case/Package: 6-DIP module
Operating Temperature: -40°C to 90°C (With Derating)
ROHS: ROHS3 compliant product
Win Source Part Number: 1335984-THN 15-4815WIR
