Same model may have multiple batches, images only for reference.

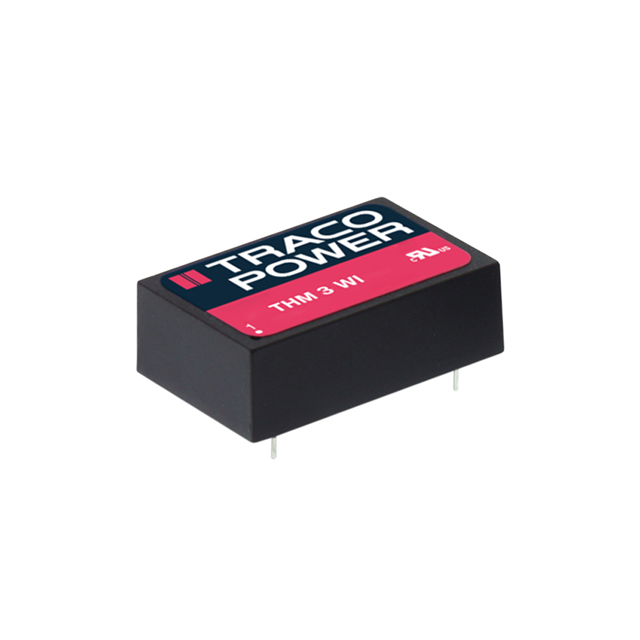

THM 3-2412WI Real Image
Same model may have multiple batches, images only for reference.

THM 3-2412WI

Part No THM 3-2412WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 3W / Isolated Module DC DC Converter 1 Output 12V 250mA 9V - 36V Input
Datasheet
THM 3-2412WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Current - Output (Max) 250mA
Power (Watts) 3 W
Voltage - Isolation 5 kV
Applications Medical
Features OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 90°C
Efficiency 87%
Mounting Through Hole
Case / Package 24-DIP Module, 6 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number THM 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2281
Standard Package 10
Win Source Part Number 1335956-THM 3-2412WI
Ultra Librarian 3D Model Ultra Librarian THM 3-2412WI CAD Model

Description

The Traco Power THM 3-2412WI is an isolated module DC-DC converter that provides a regulated 12V output voltage.

  • Power Rating: 3W
  • Efficiency: 87%
  • Isolation Voltage: 5 kV
  • Maximum Output Current: 250mA
  • Protection: Over-current protection (OCP), over-voltage protection (OVP), and short-circuit protection (SCP)
  • Temperature Range: -40°C to 90°C
  • Applications: Medical applications
  • Package: 24-DIP module package with six leads
  • Mounting: Through hole
  • Compliance: ROHS3 compliant
  • REACH: Unaffected by REACH
