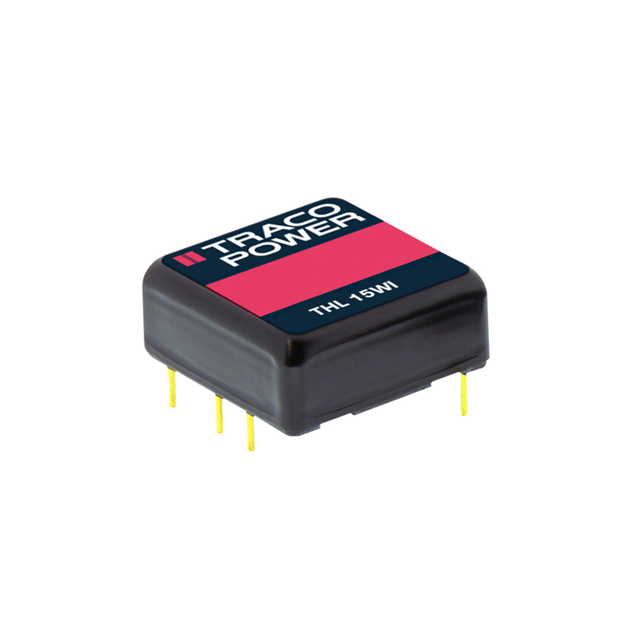

Same model may have multiple batches, images only for reference.

THL 15-2423WI

Name: THL 15-2423WI
Brand: Traco Power
SKU: 1349707
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	THL 15-2423WI
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 15W / Isolated Module DC DC Converter 2 Output 15V -15V 500mA, 500mA 9V - 36V Input
Datasheet	THL 15-2423WI Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Traco Power
Series	THL 15WI (15W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	500mA, 500mA
Power (Watts)	15 W
Voltage - Isolation	1.8 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 70°C
Efficiency	89%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Approval Agency	CB
Base Product Number	THL 15
Standard Package	10
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1349707-THL 15-2423WI
Ultra Librarian 3D Model	Ultra Librarian THL 15-2423WI CAD Model

Alternative Products

Description

The THL 15-2423WI is an isolated module DC DC converter that has a power rating of 15W.

Application: ITE (Commercial)
Standard Package: 10 units
Outputs: Two
Maximum Output Current: 500mA per output
Input Voltage Range: From 9V to 36V
Output Voltage: 15V and -15V
Features: Remote On/Off, Overcurrent protection (OCP), overvoltage protection (OVP), and short circuit protection (SCP)
Efficiency: 89 percent
Mounting Type: Through-hole
Manufacturer: Traco Power
Win Source Part Number: 1349707-THL 15-2423WI
