Same model may have multiple batches, images only for reference.

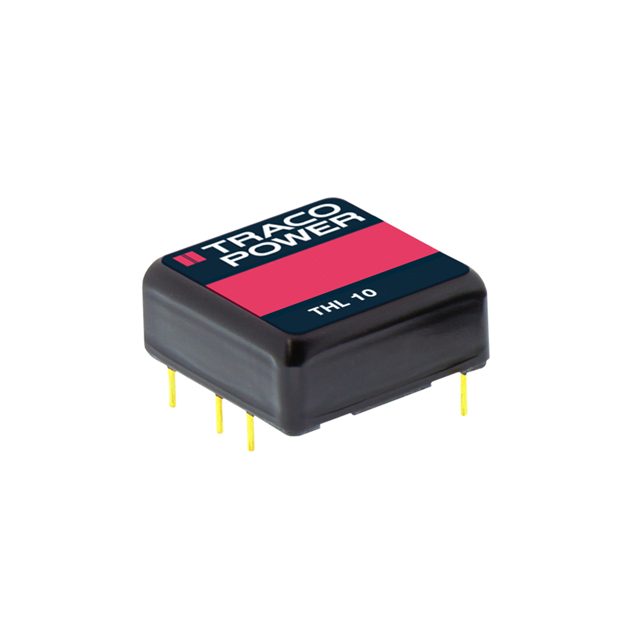

THL 10-2421 Real Image
Same model may have multiple batches, images only for reference.

THL 10-2421

Part No THL 10-2421
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 10W / Isolated Module DC DC Converter 2 Output 5V -5V 1A, 1A 18V - 36V Input
Datasheet
THL 10-2421 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Box
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 1A, 1A
Power (Watts) 10 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 80°C (With Derating)
Efficiency 85%
Mounting Through Hole
Case / Package 5-DIP Module, 4 Leads
Size / Dimension 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Base Product Number THL 10
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-1145
Standard Package 10
Win Source Part Number 1335929-THL 10-2421
Ultra Librarian 3D Model Ultra Librarian THL 10-2421 CAD Model

Description

This isolated module power supply is manufactured by Traco Power and has a Win Source Part Number of 1335929-THL 10-2421.

  • Win Source Part Number: 1335929-THL 10-2421
  • Power Output: 10 W
  • Features: SCP
  • Size and Dimension: 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
  • Application: ITE (Commercial)
  • Standard Package: 10
  • Mounting Style: Through hole
  • Voltage Isolation: 1.5 kV
  • Number of Outputs: 2
  • Maximum Output Current: 1A each
  • Input Voltage Range: 18V to 36V
  • Output Voltage: 5V and -5V
  • Efficiency: 85%
  • Operating Temperature: -40°C ~ 80°C (With Derating)
  • Package: 5-DIP Module, 4 Leads
  • ECCN: EAR99
  • ROHS3 Compliant: Yes
