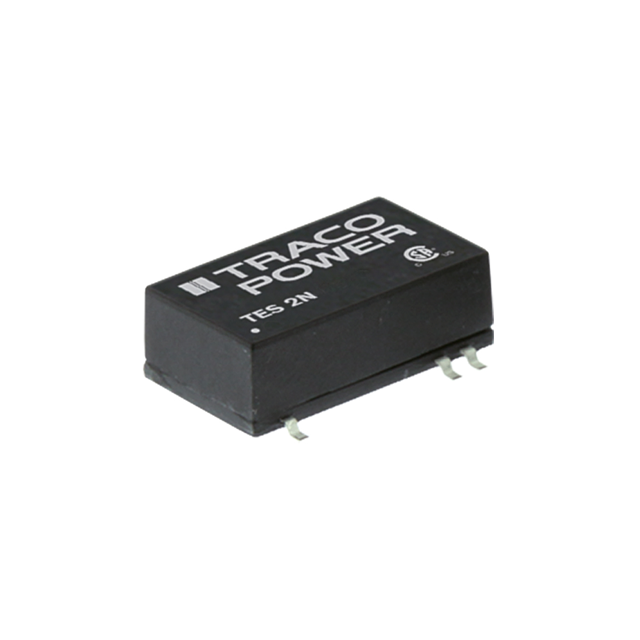

Same model may have multiple batches, images only for reference.

TES 2N-0512

Name: TES 2N-0512
Brand: Traco Power
SKU: 1335865
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TES 2N-0512
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 2W / Isolated Module DC DC Converter 1 Output 12V 165mA 4.5V - 9V Input
Datasheet	TES 2N-0512 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	12V
Current - Output (Max)	165mA
Power (Watts)	2 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	75%
Mounting	Surface Mount
Case / Package	16-SMD Module, 6 Leads
Size / Dimension	0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm)
Base Product Number	TES 2
RoHS Status	ROHS3 Compliant
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	7613441017600,1951-2470
Standard Package	10
Win Source Part Number	1335865-TES 2N-0512
Ultra Librarian 3D Model	Ultra Librarian TES 2N-0512 CAD Model

Alternative Products

Description

The TES 2N-0512 isolated module DC-DC converter from Traco Power is a high-performance component with a power rating of 2W.

Voltage Isolation: 1.5kV
Current Output: 165mA
Package: Surface-mount package
Features: SCP protection
Suitable for: Commercial applications
Operating Temperature Range: -40°C to 85°C
Efficiency: 75%
Status: Not recommended for new designs
