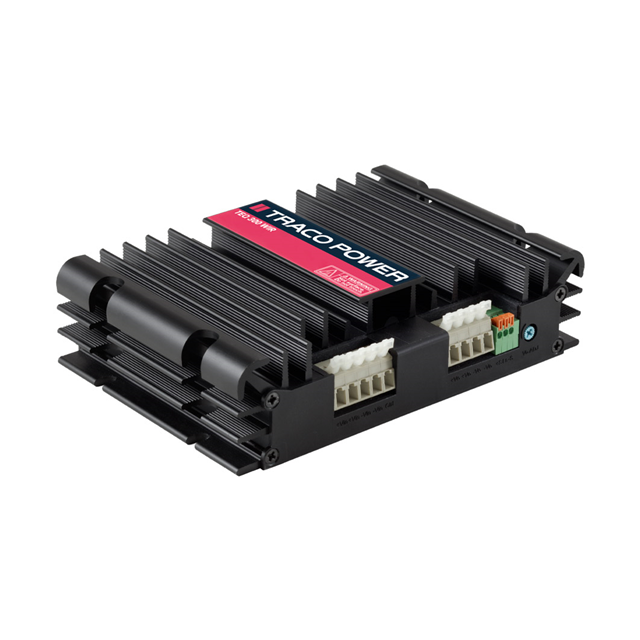

TEQ 300-7215WIR Real Image
Same model may have multiple batches, images only for reference.

TEQ 300-7215WIR

Part No TEQ 300-7215WIR
Manufacturer Traco Power
Catalog External/Internal (Off - Board) DC DC Converters
Description DC/DC CONVERTER 24V 300W / Enclosed DC DC Converter 1 Output 24V 12.5A 160V Input
Datasheet
TEQ 300-7215WIR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - DC DC Converters
Mfr Traco Power
Series TEQ 300WIR (300W)
Package Box
Type Enclosed
Voltage - Input (Min) 43V
Voltage - Input (Max) 160V
Number of Outputs 1
Voltage - Output 1 24V
Current - Output (Max) 12.5A
Power (Watts) 300W
Voltage - Isolation 3 kV
Applications Industrial, ITE (Commercial) , Railway
Efficiency 91%
Temperature Range - Operating -40°C ~ 80°C
Mounting Type Chassis Mount
Size / Dimension 6.00" L x 4.00" W x 1.52" H (152.4mm x 101.6mm x 38.6mm)
Approval Agency CB, CE, cULus, cURus
Base Product Number TEQ 300
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1340079-TEQ 300-7215WIR
Ultra Librarian 3D Model Ultra Librarian TEQ 300-7215WIR CAD Model

Description

The TEQ 300WIR (300W) is a versatile power supply converter that is ideal for industrial, ITE (Commercial), and railway applications.

  • Manufacturer:
  • Product Name: TEQ 300WIR (300W)
  • Application: Industrial, ITE (Commercial), Railway
  • Type: Enclosed
  • Package: Box
  • Size: 6.00" L x 4.00" W x 1.52" H (152.4mm x 101.6mm x 38.6mm)
  • Voltage Isolation: 3 kV
  • Efficiency: 91%
  • Outputs: Single
  • Maximum Output Current: 12.5A
  • Input Voltage: 43V to 160V
  • Output Voltage: 24V
  • Operating Temperature: -40°C to 80°C
  • Mounting: Chassis Mount
  • Approvals: CB, CE, cULus, cURus
