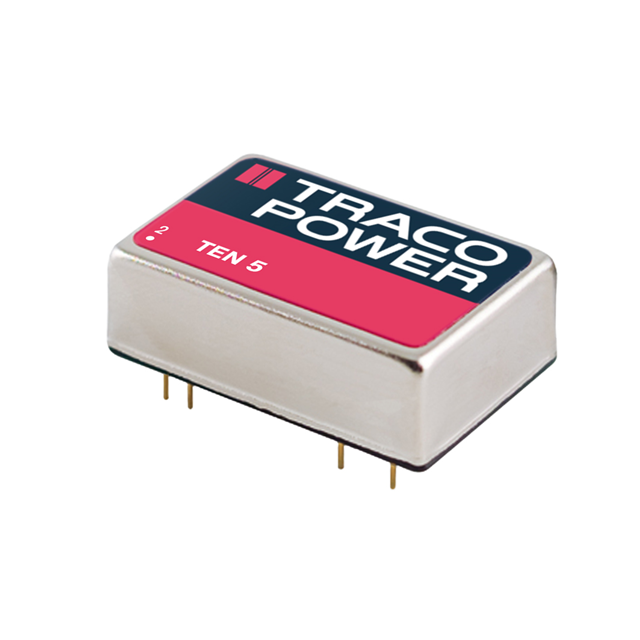

The TEN5-1222 is a high-performance 5-Watt DC/DC converter module manufactured by Traco Power. It is designed to provide a regulated dual output voltage from a DC input, making it suitable for a wide range of applications where isolation and voltage conversion are required. The '1222' indicates a 12V input and dual 12V output.

Applications

• Industrial Automation: Powering sensors, actuators, and control circuits.
• Instrumentation: Providing isolated power to measurement equipment.
• Telecommunications: Providing isolated power for network devices.
• Mobile Equipment: Powering portable devices and systems.
• Medical Devices: Providing isolated power for sensitive medical equipment, ensuring patient safety.

Features

• 5-Watt Output Power: Delivers sufficient power for various electronic circuits.
• 2:1 Input Voltage Range: Accommodates a wide range of input voltage fluctuations.
• 1500 VDC I/O Isolation: Provides electrical isolation between input and output, enhancing safety and reducing noise.
• Regulated Output: Ensures a stable and consistent output voltage, even with variations in input voltage or load.
• Short-Circuit Protection: Protects the converter and connected circuits from damage due to short circuits.
• Compact Size: Allows for easy integration into space-constrained applications.
• RoHS Compliant: Complies with environmental regulations, ensuring it's free from hazardous substances.

Benefits

• Stable Power Supply: Provides a consistent and regulated output voltage.
• Electrical Isolation: Enhances safety and reduces noise in sensitive circuits.
• Wide Input Voltage Range: Simplifies design and reduces the need for additional components.
• Robust Protection Features: Protects the converter and connected circuits from damage.
• Compact Design: Saves valuable board space and allows for easy integration.

Technical Specifications:

• Input Voltage Range: 9-18 VDC
• Output Voltage: ±12 VDC
• Output Current: ±208 mA
• Isolation Voltage: 1500 VDC
• Operating Temperature Range: -40°C to +85°C
• Efficiency: Up to 85%
• Package: SIP (Single In-line Package)

The TEN5-1222 DC/DC converter module is a reliable and efficient solution for providing isolated and regulated power in a wide range of applications. Its robust design and comprehensive protection features make it a preferred choice for engineers and manufacturers seeking dependable performance in demanding environments.
