Same model may have multiple batches, images only for reference.

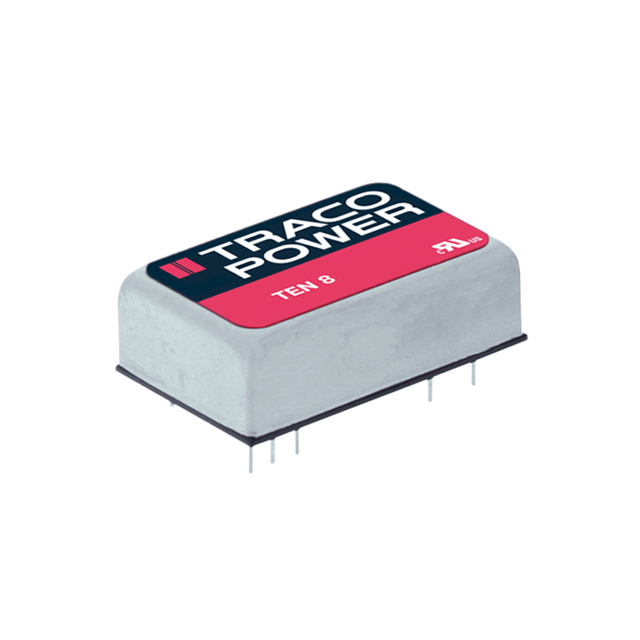

TEN 8-1223 Real Image
Same model may have multiple batches, images only for reference.

TEN 8-1223

Part No TEN 8-1223
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 8W / Isolated Module DC DC Converter 2 Output 15V -15V 265mA, 265mA 9V - 18V Input
Datasheet
TEN 8-1223 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 265mA, 265mA
Power (Watts) 8 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 85%
Mounting Through Hole
Case / Package 24-DIP Module, 9 Leads
Size / Dimension 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
Base Product Number TEN 8
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2220
Standard Package 10
Win Source Part Number 1335848-TEN 8-1223
Ultra Librarian 3D Model Ultra Librarian TEN 8-1223 CAD Model

Description

The Traco Power TEN 8-1223 is a DC-DC converter with a power output of 8W.

  • Type: Isolated module
  • Outputs: 2
  • Voltage Isolation: 1.5kV
  • Features: Remote on/off, overcurrent protection (OCP) and short circuit protection (SCP)
  • Size: 1.26 inches (32.0mm) in length, 0.80 inches (20.3mm) in width, and 0.40 inches (10.2mm) in height
  • Temperature Range: -40°C to 85°C with derating
  • Mounting Type: Through-hole
  • Applications: ITE (commercial)
  • Efficiency: 85%
  • Compliance: ROHS3
  • MSL Level: Not applicable
  • HTSUS: 8504.40.9580
