Same model may have multiple batches, images only for reference.

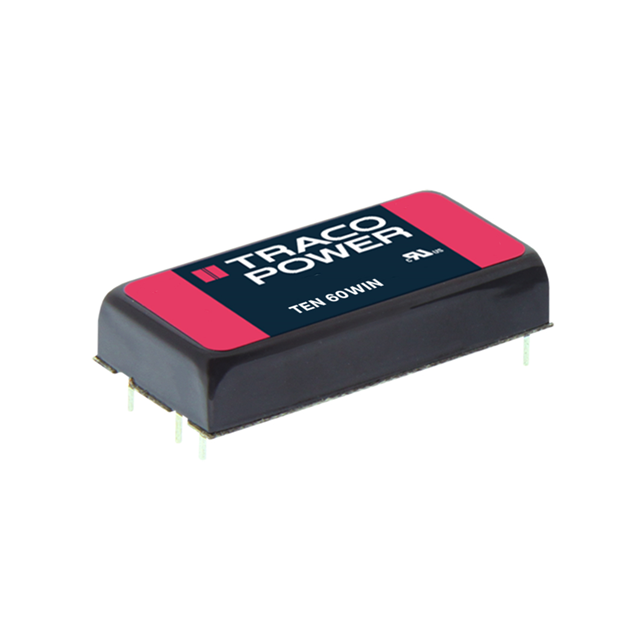

TEN 60-4822WIN Real Image
Same model may have multiple batches, images only for reference.

TEN 60-4822WIN

Part No TEN 60-4822WIN
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 60W / Isolated Module DC DC Converter 2 Output 12V -12V 2.5A, 2.5A 18V - 75V Input
Datasheet
TEN 60-4822WIN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 2.5A, 2.5A
Power (Watts) 60 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 91%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package Module
Base Product Number TEN 60
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEN 60-4822WIN-ND,TEN60-4822WIN
Standard Package 10
Win Source Part Number 1335813-TEN 60-4822WIN
Ultra Librarian 3D Model Ultra Librarian TEN 60-4822WIN CAD Model

Description

The Traco Power TEN 60-4822WIN is a DC/DC converter module designed for ITE (Commercial) applications.

  • Features: Remote On/Off, OCP, OTP, OVP, SCP, UVLO protection
  • Power: 60 W
  • Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
  • Mounting Type: Through Hole
  • Isolation Voltage: 1.5 kV
  • Number of Outputs: 2
  • Current - Output (Max): 2.5A, 2.5A
  • Input Voltage Range: 18V to 75V
  • Output Voltage: 12V and -12V
  • Efficiency: 91%
  • Operating Temperature: -40°C to 85°C with derating
  • Package: 6-DIP module package
  • ROHS Status: ROHS3 compliant
