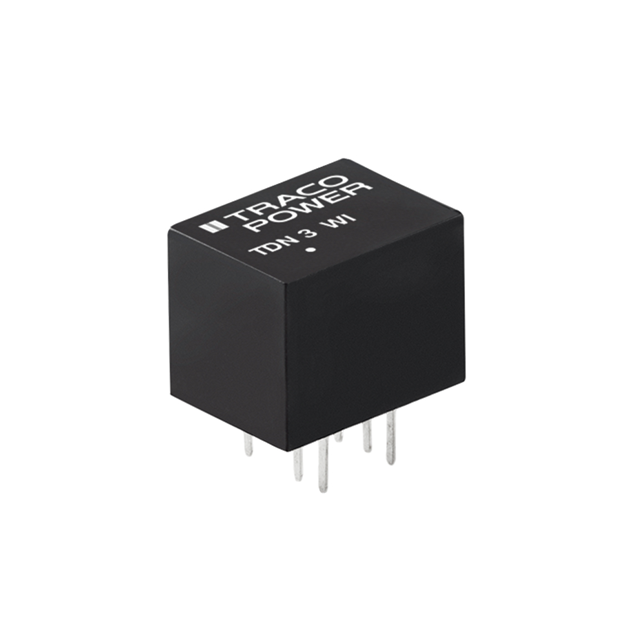

TDN 3-2422WI

Part No TDN 3-2422WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 9V - 36V Input
Datasheet
TDN 3-2422WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 70°C
Efficiency 82%
Mounting Through Hole
Case / Package 7-DIP Module, 6 Leads
Size / Dimension 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number TDN 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TDN 3-2422WI-ND,2266-TDN 3-2422WI,TDN3-2422WI
Standard Package 10
Win Source Part Number 1335443-TDN 3-2422WI
Ultra Librarian 3D Model Ultra Librarian TDN 3-2422WI CAD Model

Description

The Traco Power TDN 3-2422WI is an isolated module DC-DC converter that has a power rating of 3W.

  • Voltage Isolation: 1.6kV
  • Maximum Output Current: 125mA for both outputs
  • Outputs: Two
  • Voltage Ratings: 12V and -12V
  • Efficiency: 82%
  • Operating Temperature Range: -40°C to 70°C
  • Application: ITE (Commercial) applications
  • Mounting Style: Through-hole
  • ROHS3 Compliant: Yes
  • Standard Package: 10
