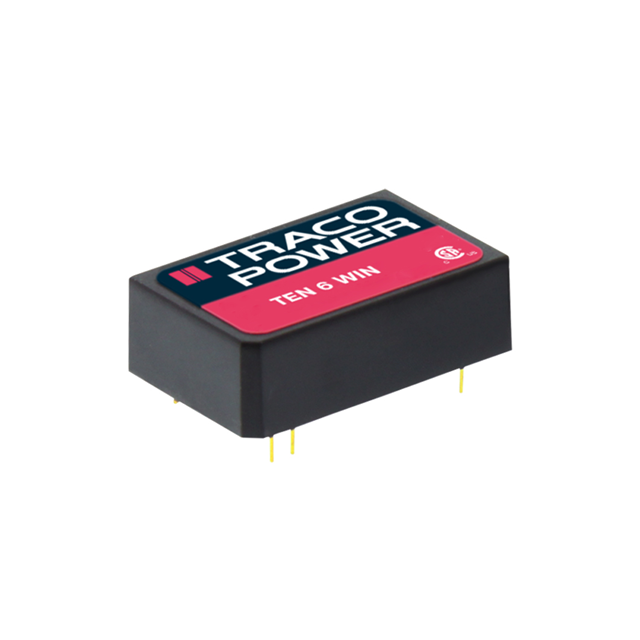

Same model may have multiple batches, images only for reference.

TEN 6-2421WIN

Name: TEN 6-2421WIN
Brand: Traco Power
SKU: 1335825
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TEN 6-2421WIN
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 5W / Isolated Module DC DC Converter 2 Output 5V -5V 500mA, 500mA 9V - 36V Input
Datasheet	TEN 6-2421WIN Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	500mA, 500mA
Power (Watts)	5 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	OCP, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	80%
Mounting	Through Hole
Case / Package	24-DIP Module, 8 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number	TEN 6
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TEN 6-2421WIN-ND,TEN6-2421WIN
Standard Package	10
Win Source Part Number	1335825-TEN 6-2421WIN
Ultra Librarian 3D Model	Ultra Librarian TEN 6-2421WIN CAD Model

Alternative Products

Description

This electronic component is a power supply board mount DC DC converter manufactured by Traco Power.

Packaging: Tube
Type: Isolated Module
Features: OCP and SCP
Size/Dimension: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Standard Package: 10
Mounting: Through Hole
Power Output: 5 W
Efficiency: 80 percent
Number of Outputs: 2
Maximum Output Current: 500mA, 500mA
Input Voltage: 9V to 36V
Output Voltage: 5V and -5V
Operating Temperature: -40°C ~ 85°C (With Derating)
Case/Package: 24-DIP module, 8 leads
ECCN: EAR99
ROHS Status: ROHS3 compliant
Win Source Part Number: 1335825-TEN 6-2421WIN
