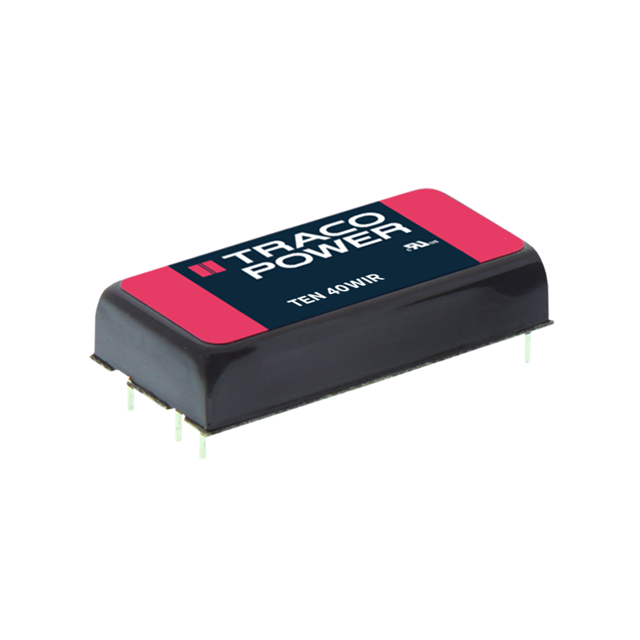

Same model may have multiple batches, images only for reference.

TEN 40-4823WIR

Name: TEN 40-4823WIR
Brand: Traco Power
SKU: 1335775
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TEN 40-4823WIR
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 40W / Isolated Module DC DC Converter 2 Output 15V -15V 1.333A, 1.333A 18V - 75V Input
Datasheet	TEN 40-4823WIR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	1.333A, 1.333A
Power (Watts)	40 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial), Railway
Features	Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	90%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number	TEN 40
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TEN40-4823WIR,TEN 40-4823WIR-ND
Standard Package	10
Win Source Part Number	1335775-TEN 40-4823WIR
Ultra Librarian 3D Model	Ultra Librarian TEN 40-4823WIR CAD Model

Alternative Products

Description

The Traco Power TEN 40-4823WIR is a DC/DC converter module with a power rating of 40W.

Power Rating: 40W
Input Voltage Range: 18V to 75V
Output Voltage: 15V and -15V
Number of Outputs: Two
Maximum Output Current: 1.333A each
Efficiency: 90%
Applications: ITE (Commercial) and Railway
Features: Remote On/Off, OCP, OVP, SCP, and UVLO
Mounting: Through hole
Package: 6-DIP module
Voltage Isolation: 1.6 kV
Compliance: ROHS3 compliant and REACH unaffected
