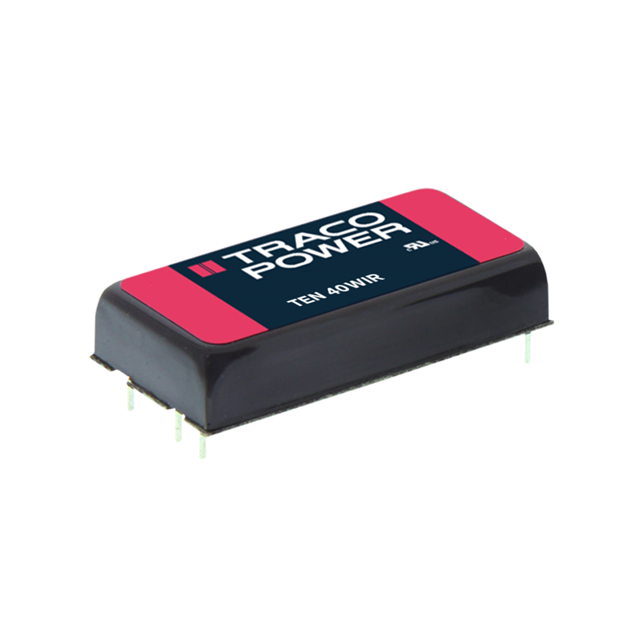

Same model may have multiple batches, images only for reference.

TEN 40-2422WIR

Name: TEN 40-2422WIR
Brand: Traco Power
SKU: 1335757
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TEN 40-2422WIR
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 40W / Isolated Module DC DC Converter 2 Output 12V -12V 1.666A, 1.666A 9V - 36V Input
Datasheet	TEN 40-2422WIR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	1.666A, 1.666A
Power (Watts)	40 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial), Railway
Features	Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	90%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package	Module
Base Product Number	TEN 40
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-2182
Standard Package	10
Win Source Part Number	1335757-TEN 40-2422WIR
Ultra Librarian 3D Model	Ultra Librarian TEN 40-2422WIR CAD Model

Alternative Products

Description

The Traco Power DC-DC Converter is an isolated module type power supply device that offers a power output of 40W.

Module Type: Isolated
Power Output: 40W
Voltage Isolation: 1.6kV
Features: Remote on/off, OCP, OVP, SCP, and UVLO
Package: 6-DIP module
Mounting: Through the hole
Maximum Output Current: 1.666A, 1.666A
Maximum Input Voltage: 36V
Efficiency: 90%
Temperature Range: -40°C to 85°C
ROHS Compliance: ROHS3 compliant
ECCN: EAR99
