Same model may have multiple batches, images only for reference.

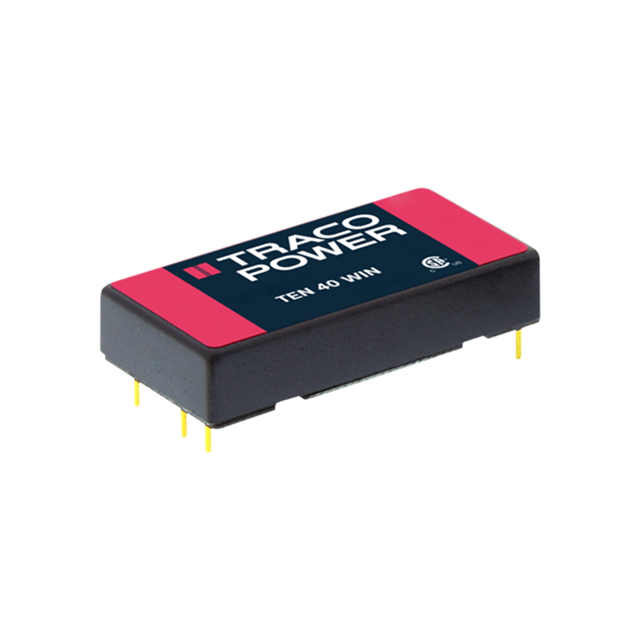

TEN 40-2422WIN Real Image
Same model may have multiple batches, images only for reference.

TEN 40-2422WIN

Part No TEN 40-2422WIN
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 40W / Isolated Module DC DC Converter 2 Output 12V -12V 1.67A, 1.67A 9V - 36V Input
Datasheet
TEN 40-2422WIN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 1.67A, 1.67A
Power (Watts) 40 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OVP, SCP
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 88%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.43" H (50.8mm x 25.4mm x 11.0mm)
Base Product Number TEN 40
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEN 40-2422WIN-ND,TEN40-2422WIN
Standard Package 10
Win Source Part Number 1335776-TEN 40-2422WIN
Ultra Librarian 3D Model Ultra Librarian TEN 40-2422WIN CAD Model

Description

The TEN 40-2422WIN is a DC-DC converter from Traco Power.

  • Type: Isolated module
  • Power Rating: 40 W
  • Number of Outputs: Two
  • Maximum Current: 1.67A each
  • Input Voltage Range: 9V to 36V
  • Output Voltage 1: 12V
  • Output Voltage 2: -12V
  • Size: 2.00" L x 1.00" W x 0.43" H (50.8mm x 25.4mm x 11.0mm)
  • Operating Temperature: -40°C to 75°C (with derating)
  • Voltage Isolation: 1.5 kV
  • Features: Remote on/off, overvoltage protection, and short circuit protection
