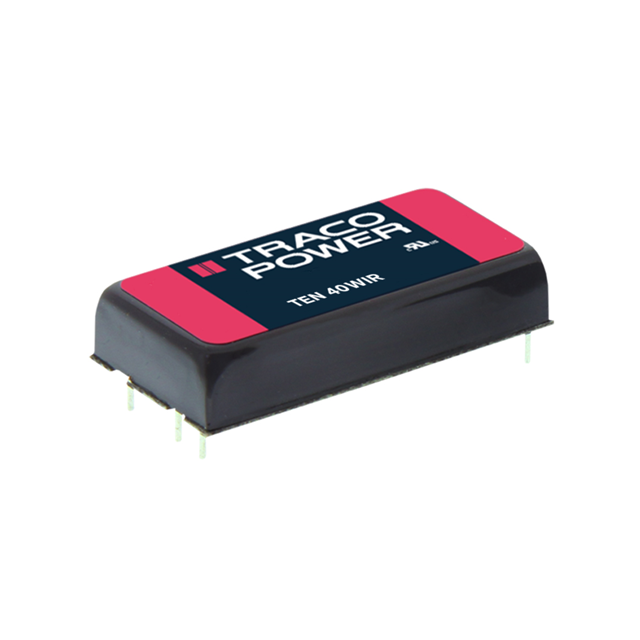

TEN 40-2415WIR Real Image
Same model may have multiple batches, images only for reference.

TEN 40-2415WIR

Part No TEN 40-2415WIR
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 40W / Isolated Module DC DC Converter 1 Output 24V 1.666A 9V - 36V Input
Datasheet
TEN 40-2415WIR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TEN 40WIR (40W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 24V
Current - Output (Max) 1.666A
Power (Watts) 40 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial), Railway
Features Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 91%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package Module
Base Product Number TEN 40
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-2080
Standard Package 10
Win Source Part Number 1025043-TEN 40-2415WIR
Ultra Librarian 3D Model Ultra Librarian TEN 40-2415WIR CAD Model

Description

The TEN 40WIR (40W) is an isolated module DC-DC converter that offers a remote on/off feature, overcurrent protection, overvoltage protection, short circuit protection, and undervoltage lockout.

  • Power: 40 W
  • Voltage Isolation: 1.6 kV
  • Output: Single
  • Maximum Output Current: 1.666A
  • Input Voltage Range: 9V to 36V
  • Output Voltage: 24V
  • Mounting Type: Hole
  • Package / Case: 6-DIP Module
  • Application: ITE (Commercial), Railway
  • Efficiency: 91%
  • Operating Temperature: -40°C to 85°C with derating
  • Dimensions: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
