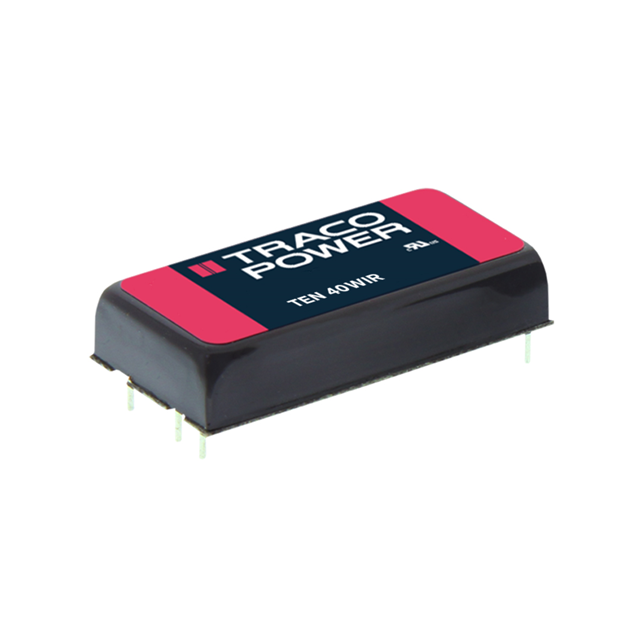

TEN 40-2412WIR

Part No TEN 40-2412WIR
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 40W / Isolated Module DC DC Converter 1 Output 12V 3.333A 9V - 36V Input
Datasheet
TEN 40-2412WIR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Current - Output (Max) 3.333A
Power (Watts) 40 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial), Railway
Features Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 92%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package Module
Base Product Number TEN 40
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2178
Standard Package 10
Win Source Part Number 1335761-TEN 40-2412WIR
Ultra Librarian 3D Model Ultra Librarian TEN 40-2412WIR CAD Model

Description

The TEN 40-2412WIR DC-DC converter from Traco Power is an isolated module type with a remote on/off feature.

  • Module Type: Isolated
  • Features: Remote on/off, Overcurrent Protection (OCP), Overvoltage Protection (OVP), Short-Circuit Protection (SCP), and Under-Voltage Lockout (UVLO)
  • Package: 6-DIP module
  • Mounting Technology: Through-hole
  • Maximum Output Power: 40 W
  • Voltage Isolation: 1.6 kV
  • Number of Outputs: Single
  • Maximum Output Current: 3.333A
  • Voltage Output: 12V
  • Input Voltage Range: 9V and 36V
  • Efficiency: 92%
  • Operating Temperature: -40°C to 85°C (with derating)
  • Applications: ITE (Commercial) and railway applications
