Same model may have multiple batches, images only for reference.

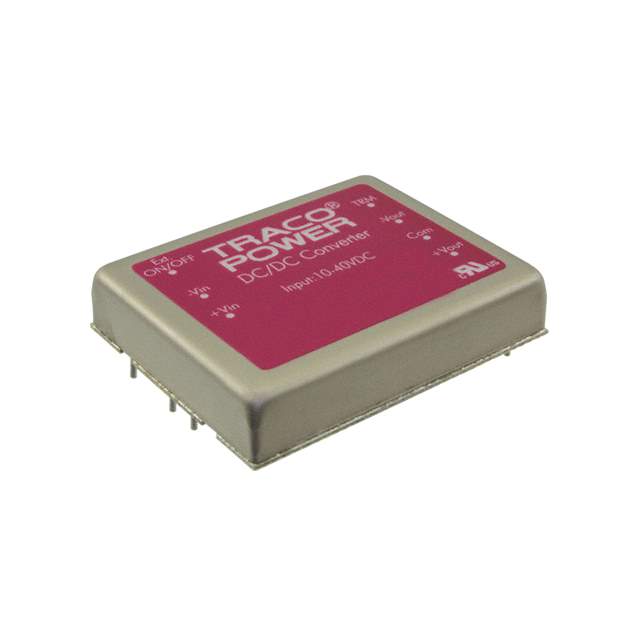

TEN 30-2422WI Real Image
Same model may have multiple batches, images only for reference.

TEN 30-2422WI

Part No TEN 30-2422WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 30W / Isolated Module DC DC Converter 2 Output 12V -12V 1.25A, 1.25A 10V - 40V Input
Datasheet
TEN 30-2422WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10V
Voltage - Input (Max) 40V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 1.25A, 1.25A
Power (Watts) 30 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 85%
Mounting Through Hole
Case / Package 7-DIP Module
Size / Dimension 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm)
Base Product Number TEN 30
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-3009,TEN30-2422WI-ND,TEN30-2422WI
Standard Package 10
Win Source Part Number 1335683-TEN 30-2422WI
Ultra Librarian 3D Model Ultra Librarian TEN 30-2422WI CAD Model

Description

This Traco Power electronic component is a DC DC converter with a power of 30W and two outputs.

  • Win Source Part Number: 1335683-TEN 30-2422WI
  • Type: isolated module type
  • Size/Dimension: 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm)
  • Features: remote on/off, OCP, OTP, OVP, SCP, UVLO
  • Efficiency: 85%
  • Mounting: not for new designs
  • ROHS3: compliance
  • Details: Please contact us for more details
