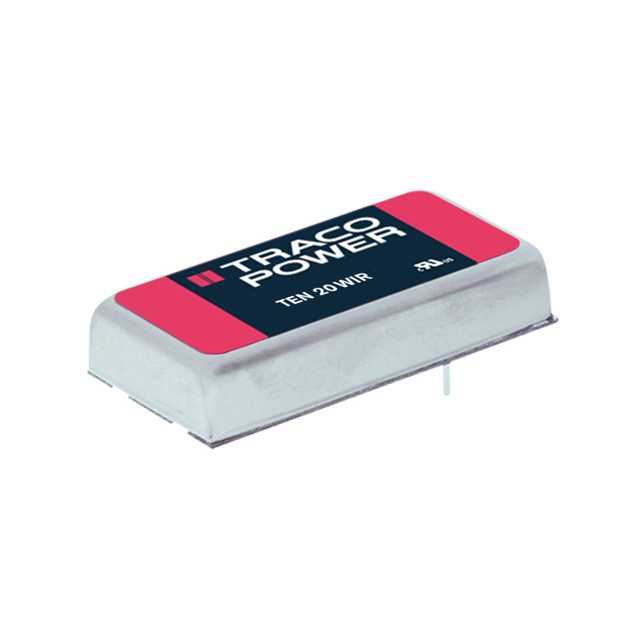

Same model may have multiple batches, images only for reference.

TEN 20-7223WIR

Name: TEN 20-7223WIR
Brand: Traco Power
SKU: 1335702
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TEN 20-7223WIR
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 20W / Isolated Module DC DC Converter 2 Output 15V -15V 667mA, 667mA 43V - 160V Input
Datasheet	TEN 20-7223WIR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	43V
Voltage - Input (Max)	160V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	667mA, 667mA
Power (Watts)	20 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial), Railway
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	89%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number	TEN 20
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TEN20-7223WIR,TEN 20-7223WIR-ND,TEN20-7223WIR-ND,1951-2981
Standard Package	10
Win Source Part Number	1335702-TEN 20-7223WIR
Ultra Librarian 3D Model	Ultra Librarian TEN 20-7223WIR CAD Model

Alternative Products

Description

This Traco Power electronic component is a DC DC converter with a 20W power output.

Case: 6-DIP module case
Features: remote On/Off, OCP, OVP, and SCP
Size: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Applications: ITE (Commercial) and Railway applications
Voltage Isolation: 2.25 kV
Outputs: two outputs
Maximum Current Output: 667mA each
Input Voltage: ranges from 43V to 160V
Output Voltage 1: 15V
Output Voltage 2: -15V
Efficiency: 89%
Temperature Range: -40°C ~ 85°C (With Derating)
