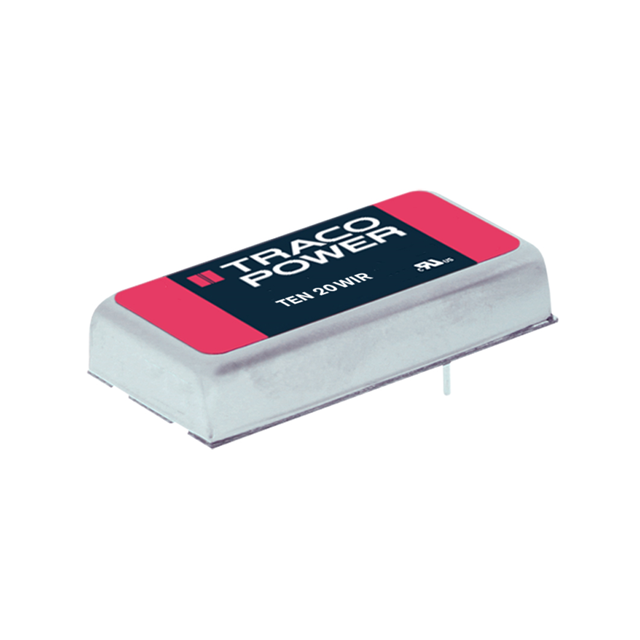

TEN 20-4812WIR

Name: TEN 20-4812WIR
Brand: Traco Power
SKU: 1335663
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TEN 20-4812WIR
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 20W / Isolated Module DC DC Converter 1 Output 12V 1.67A 18V - 75V Input
Datasheet	TEN 20-4812WIR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Current - Output (Max)	1.67A
Power (Watts)	20 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial), Railway
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	89%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number	TEN 20
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TEN20-4812WIR,TEN 20-4812WIR-ND
Standard Package	10
Win Source Part Number	1335663-TEN 20-4812WIR
Ultra Librarian 3D Model	Ultra Librarian TEN 20-4812WIR CAD Model

Alternative Products

Description

The TEN 20-4812WIR is an isolated module type product from Traco Power.

Win Source Part Number: 1335663-TEN 20-4812WIR
Packaging: Tube
Features: Remote on/off, OCP, OVP, SCP
Size/Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Applications: ITE (Commercial), Railway
Standard Package: 10
Mounting Style: Through-Hole
Power: 20W
Efficiency: 89 percent
Voltage Isolation: 2.25 kV
Current Output (max): 1.67A
Temperature Range: -40°C to 85°C (With Derating)
ROHS3 Compliant: Yes
