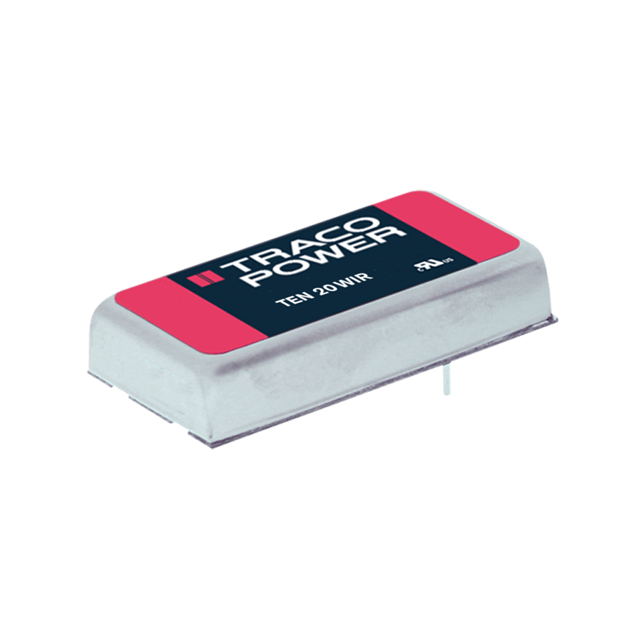

TEN 20-2422WIR Real Image
Same model may have multiple batches, images only for reference.

TEN 20-2422WIR

Part No TEN 20-2422WIR
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 20W / Isolated Module DC DC Converter 2 Output 12V -12V 833mA, 833mA 9V - 36V Input
Datasheet
TEN 20-2422WIR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 833mA, 833mA
Power (Watts) 20 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial), Railway
Features Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 88%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number TEN 20
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2129
Standard Package 10
Win Source Part Number 1335668-TEN 20-2422WIR
Ultra Librarian 3D Model Ultra Librarian TEN 20-2422WIR CAD Model

Description

This electronic component is manufactured by Traco Power and is a power supply board mount DC DC converter.

  • Win Source Part Number: 1335668-TEN 20-2422WIR
  • Packaging: Tube
  • Type: Isolated Module
  • Features: Remote on/off, OCP, OVP, and SCP
  • Size: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
  • Applications: ITE (Commercial) and Railway
  • Standard Package: 10
  • Mounting: Through-Hole
  • Power Output: 20W
  • Voltage Isolation: 2.25 kV
  • Number of Outputs: Two
  • Maximum Output Current: 833mA, 833mA
  • Input Voltage: 9V to 36V
  • Voltage Output 1: 12V
  • Voltage Output 2: -12V
  • Efficiency: 88%
  • Operating Temperature: -40°C ~ 85°C (With Derating)
  • Case/Package: 6-DIP Module
  • ECCN: EAR99
  • REACH: REACH Unaffected
  • HTSUS: 8504.40.9580
  • Other Part Number: 1951-2129
  • Base Product Number: TEN 20
  • ROHS3 Compliant: Yes
