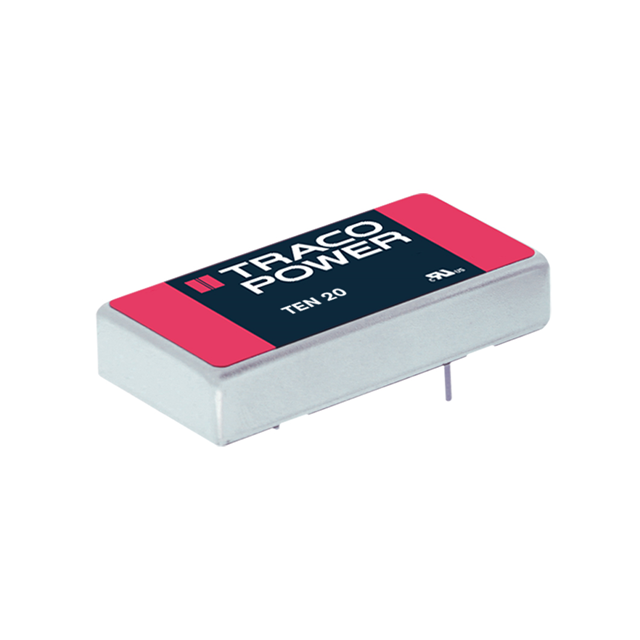

TEN 20-2422 Real Image
Same model may have multiple batches, images only for reference.

TEN 20-2422

Part No TEN 20-2422
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 20W / Isolated Module DC DC Converter 2 Output 12V -12V 835mA, 835mA 18V - 36V Input
Datasheet
TEN 20-2422 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TEN 20 (20W)
Package Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 835mA, 835mA
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 89%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number TEN 20
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-2127
Standard Package 10
Win Source Part Number 1099083-TEN 20-2422
Ultra Librarian 3D Model Ultra Librarian TEN 20-2422 CAD Model

Description

The TEN 20-2422 is a 20W isolated module DC-DC converter from Traco Power.

  • Manufacturer: Traco Power
  • Product Name: TEN 20-2422
  • Power: 20W
  • Application: ITE (Commercial)
  • Voltage Isolation: 1.5 kV
  • Number of Outputs: Two
  • Maximum Output Current: 835mA for each output
  • Voltage Input Range: 18V to 36V
  • Voltage Output 1: 12V
  • Voltage Output 2: -12V
  • Mounting Type: Through hole
  • Package/Case: 6-DIP module
  • Temperature Range: -40°C to 85°C (With Derating)
  • Dimensions: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
  • Efficiency: 89%
  • Features: SCP
  • Package: Tube
