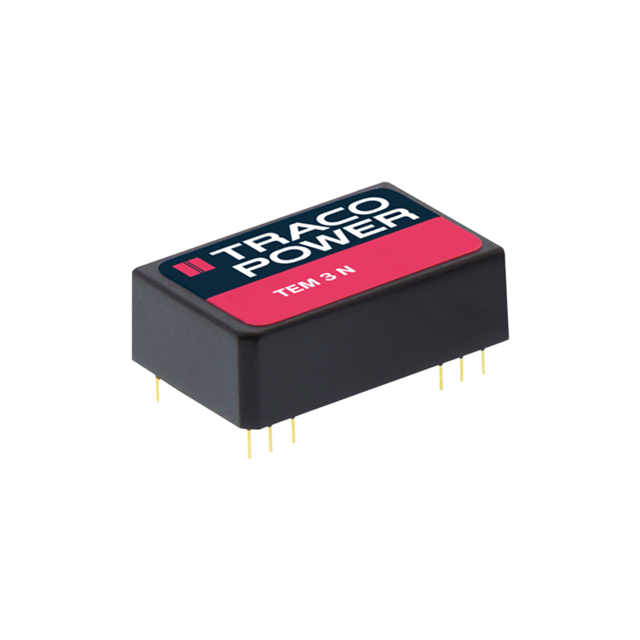

Same model may have multiple batches, images only for reference.

TEM 3-2423N

Name: TEM 3-2423N
Brand: Traco Power
SKU: 1335634
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TEM 3-2423N
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 21.6V - 26.4V Input
Datasheet	TEM 3-2423N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	100mA, 100mA
Power (Watts)	3 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	82%
Mounting	Through Hole
Case / Package	24-DIP Module, 12 Leads
Size / Dimension	1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm)
Base Product Number	TEM 3
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-2120
Standard Package	10
Win Source Part Number	1335634-TEM 3-2423N
Ultra Librarian 3D Model	Ultra Librarian TEM 3-2423N CAD Model

Alternative Products

Description

The Traco Power TEM 3-2423N is a 3W isolated module DC-DC converter with two outputs.

Voltage Isolation: 1.5 kV
Mounting: through-hole mounting
Size: 1.26 inches in length, 0.79 inches in width, and 0.39 inches in height
Designed for: ITE (Commercial) applications
Feature: SCP
Efficiency: 82%
Temperature Range: -40°C to 85°C with derating
Input Voltage: ranges from 21.6V to 26.4V
Output Voltage: 15V (first output), -15V (second output)
