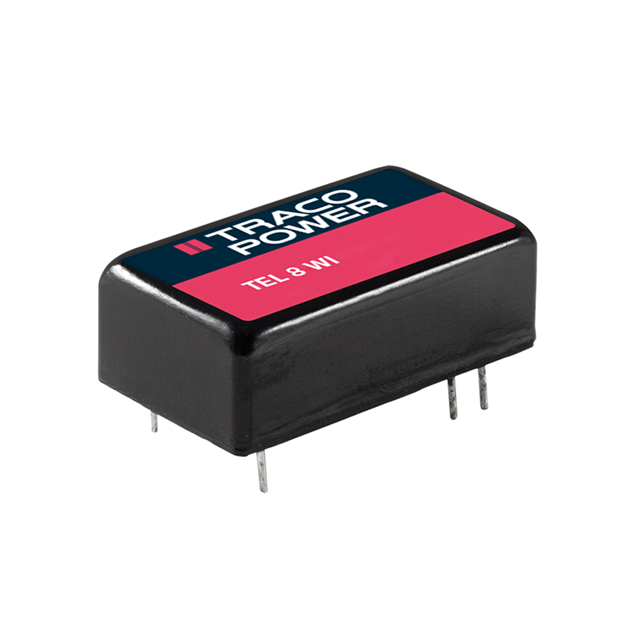

TEL 8-2422WI Real Image
Same model may have multiple batches, images only for reference.

TEL 8-2422WI

Part No TEL 8-2422WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 8W / Isolated Module DC DC Converter 2 Output 12V -12V 335mA, 335mA 9V - 36V Input
Datasheet
TEL 8-2422WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 335mA, 335mA
Power (Watts) 8 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 80°C (With Derating)
Efficiency 85%
Mounting Through Hole
Case / Package 16-DIP Module, 6 Leads
Size / Dimension 0.95" L x 0.55" W x 0.33" H (24.1mm x 14.0mm x 8.5mm)
Base Product Number TEL 8
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEL8-2422WI,1951-2923,TEL 8-2422WI-ND,TEL8-2422WI-ND
Standard Package 10
Win Source Part Number 1335609-TEL 8-2422WI
Ultra Librarian 3D Model Ultra Librarian TEL 8-2422WI CAD Model

Description

The Isolated Module Type electronic component with Win Source Part Number: 1335609-TEL 8-2422WI is a DC DC converter with a power of 8 W and a voltage isolation of 1.5 kV.

  • Number of outputs: 2
  • Current output maximum: 335mA, 335mA
  • Voltage input minimum: 9V
  • Voltage input maximum: 36V
  • Voltage output 1: 12V
  • Voltage output 2: -12V
  • Efficiency: 85%
  • Temperature range - operating: -40°C ~ 80°C (With Derating)
  • Package/case: 16-DIP Module, 6 Leads
  • Supplied by: Traco Power
  • Ideal for: Power Supplies - Board Mount>DC DC Converters
