Same model may have multiple batches, images only for reference.

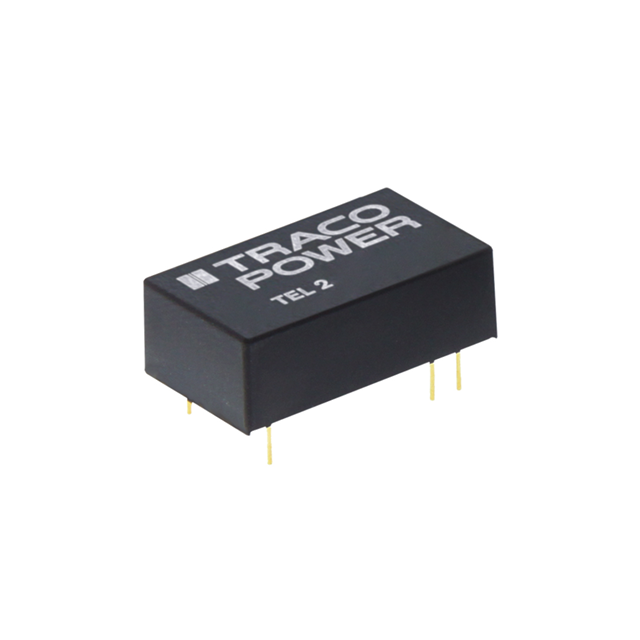

TEL 2-2423 Real Image
Same model may have multiple batches, images only for reference.

TEL 2-2423

Part No TEL 2-2423
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 2W / Isolated Module DC DC Converter 2 Output 15V -15V 65mA, 65mA 18V - 36V Input
Datasheet
TEL 2-2423 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 65mA, 65mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 75°C
Efficiency 80%
Mounting Through Hole
Case / Package 16-DIP Module, 6 Leads
Size / Dimension 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm)
Base Product Number TEL 2
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2533
Standard Package 10
Win Source Part Number 1335579-TEL 2-2423
Ultra Librarian 3D Model Ultra Librarian TEL 2-2423 CAD Model

Description

The Traco Power 1335579-TEL 2-2423 is an isolated module type of DC-DC converter.

  • Power: 2W
  • Voltage Isolation: 1.5kV
  • Outputs: Two outputs
  • Maximum Output Current: 65mA each
  • Temperature Range: -40°C to 75°C
  • Standard Package: 10
  • Mounting Style: Through-hole
  • Package: 16-DIP module with 6 leads
  • Compliance: ROHS3 compliant
  • ECCN: EAR99
  • Status: Not for new designs
