Same model may have multiple batches, images only for reference.

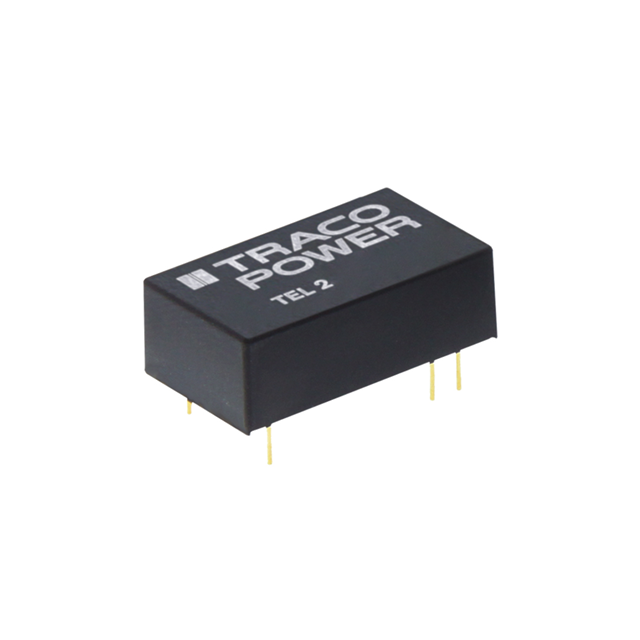

TEL 2-0522 Real Image
Same model may have multiple batches, images only for reference.

TEL 2-0522

Part No TEL 2-0522
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 85mA, 85mA 4.5V - 9V Input
Datasheet
TEL 2-0522 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 85mA, 85mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 75°C
Efficiency 69%
Mounting Through Hole
Case / Package 16-DIP Module, 6 Leads
Size / Dimension 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm)
Base Product Number TEL 2
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2098
Standard Package 10
Win Source Part Number 1335562-TEL 2-0522
Ultra Librarian 3D Model Ultra Librarian TEL 2-0522 CAD Model

Description

The Traco Power TEL 2-0522 is an isolated DC-DC converter module that is designed for use in ITE (Commercial) applications.

  • Power Output: 2 W
  • Voltage Isolation: 1.5 kV
  • Outputs: Two
  • Maximum Output Current: 85 mA each
  • Standard Package: 10
  • Mounting Style: Through-hole
