Same model may have multiple batches, images only for reference.

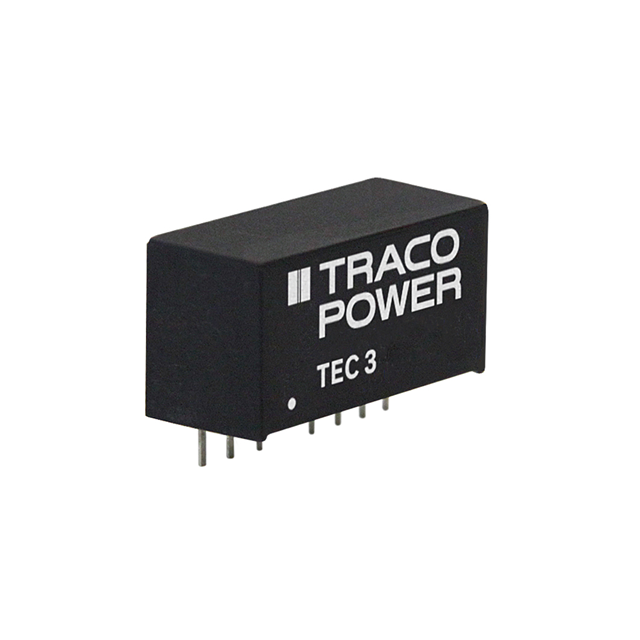

TEC 3-4822 Real Image
Same model may have multiple batches, images only for reference.

TEC 3-4822

Part No TEC 3-4822
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 36V - 75V Input
Datasheet
TEC 3-4822 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 90°C (With Derating)
Efficiency 86%
Mounting Through Hole
Case / Package 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
Base Product Number TEC 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-1503
Standard Package 10
Win Source Part Number 1335533-TEC 3-4822
Ultra Librarian 3D Model Ultra Librarian TEC 3-4822 CAD Model

Description

The Traco Power TEC 3-4822 is a DC DC converter that comes in a tube packaging.

  • Type: Isolated module
  • Feature: Remote On/Off
  • Feature: SCP
  • Size/Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
  • Application: ITE (Commercial)
  • Standard Package: 10
  • Mounting: Through a hole
  • Power: 3 W
  • Voltage Isolation: 1.6 kV
  • Outputs: Two
  • Maximum Output Current: 125mA and 125mA
  • Input Voltage: 36V to 75V
  • Output Voltage 1: 12V
  • Output Voltage 2: -12V
  • Efficiency: 86%
  • Temperature Range: -40°C to 90°C (With Derating)
  • Compliance: ROHS3
