Same model may have multiple batches, images only for reference.

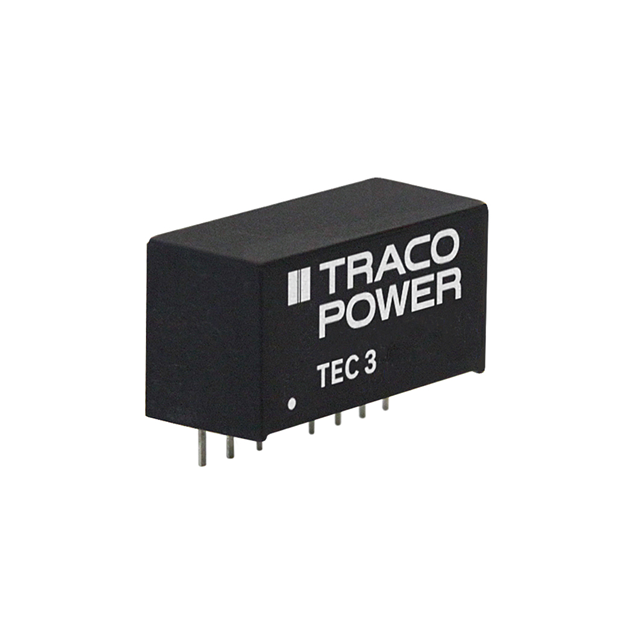

TEC 3-1223 Real Image
Same model may have multiple batches, images only for reference.

TEC 3-1223

Part No TEC 3-1223
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 9V - 18V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 100mA, 100mA
Power (Watts) 3 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 90°C (With Derating)
Efficiency 83%
Mounting Through Hole
Case / Package 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
Base Product Number TEC 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-1469
Standard Package 10
Win Source Part Number 1335509-TEC 3-1223
Ultra Librarian 3D Model Ultra Librarian TEC 3-1223 CAD Model

Description

The TEC 3-1223 is an isolated module DC-DC converter designed for ITE (Commercial) applications.

  • Applications: ITE (Commercial)
  • Power Rating: 3W
  • Voltage Isolation: 1.6kV
  • Outputs: Two
  • Output Voltage: 15V and -15V
  • Maximum Output Current: 100mA
  • Voltage Input Range: 9V to 18V
  • Efficiency Rating: 83%
  • Package Size: 8-SIP module, 7 leads
  • Dimensions: 0.86" L x 0.36" W x 0.44" H
  • Applications: ITE (Commercial) and power supply
