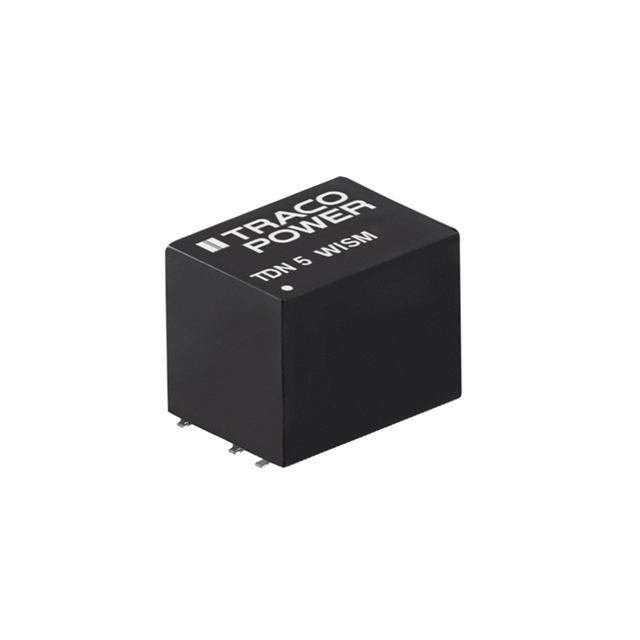

TDN 5-4823WISM Real Image
Same model may have multiple batches, images only for reference.

TDN 5-4823WISM

Part No TDN 5-4823WISM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 5W / Isolated Module DC DC Converter 2 Output 15V -15V 168mA, 168mA 18V - 75V Input
Datasheet
TDN 5-4823WISM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 168mA, 168mA
Power (Watts) 5 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 84%
Mounting Surface Mount
Case / Package 7-SMD Module, 6 Leads
Size / Dimension 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Approval Agency UL
Standard Number 60950-1; 62368-1
Base Product Number TDN 5
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TDN 5-4823WISM-ND,TDN5-4823WISM
Standard Package 10
Win Source Part Number 1335494-TDN 5-4823WISM
Ultra Librarian 3D Model Ultra Librarian TDN 5-4823WISM CAD Model

Description

The Traco Power TDN 5-4823WISM is an isolated module DC-DC converter with a power of 5 W.

  • Power: 5 W
  • Features: Remote On/Off and SCP
  • Voltage Isolation: 1.6 kV
  • Maximum Efficiency: 84%
  • Standard Package: 10
  • Case/Package: 7-SMD module, 6 leads
  • Temperature Range: -40°C to 75°C (with derating)
  • Compliance: REACH and RoHS3
  • MSL Level: 2 (1 year)
  • Applications: ITE (commercial)
