Same model may have multiple batches, images only for reference.

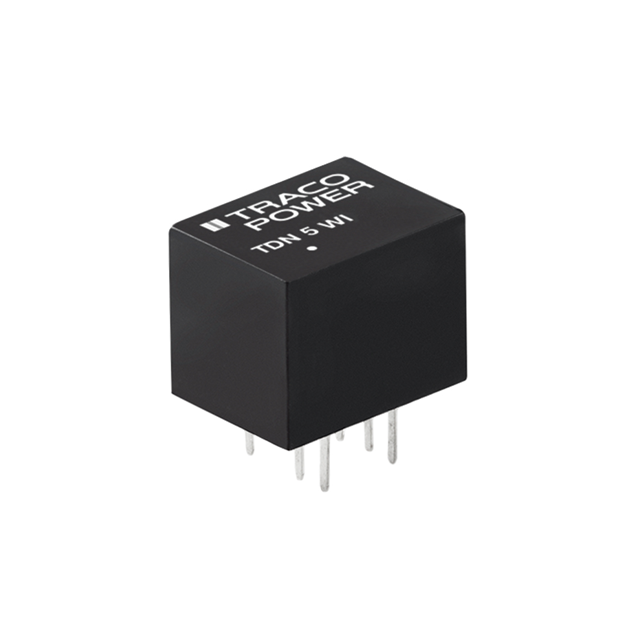

TDN 5-4822WI Real Image
Same model may have multiple batches, images only for reference.

TDN 5-4822WI

Part No TDN 5-4822WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 5W / Isolated Module DC DC Converter 2 Output 12V -12V 210mA, 210mA 18V - 75V Input
Datasheet
TDN 5-4822WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 210mA, 210mA
Power (Watts) 5 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 83%
Mounting Through Hole
Case / Package 7-DIP Module, 6 Leads
Size / Dimension 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number TDN 5
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 2266-TDN 5-4822WI,TDN5-4822WI,TDN 5-4822WI-ND
Standard Package 10
Win Source Part Number 1335515-TDN 5-4822WI
Ultra Librarian 3D Model Ultra Librarian TDN 5-4822WI CAD Model

Description

The Traco Power TDN 5-4822WI is a 5W isolated module DC-DC converter.

  • Power: 5W
  • Voltage Isolation: 1.6kV
  • Number of Outputs: 2
  • Maximum Current Output: 210mA
  • Maximum Current Output: 210mA
  • Voltage Input: 18V to 75V
  • Temperature Range: -40°C to 75°C
  • ROHS3 Compliant: Yes
