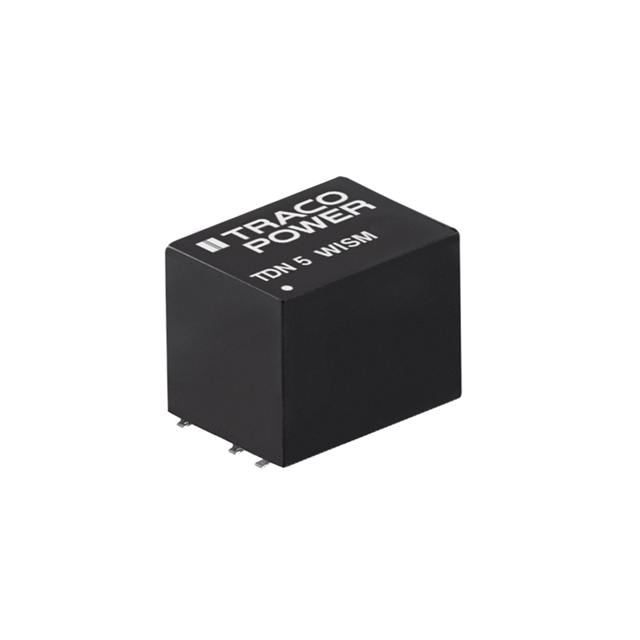

Same model may have multiple batches, images only for reference.

TDN 5-0922WISM

Name: TDN 5-0922WISM
Brand: Traco Power
SKU: 1335497
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TDN 5-0922WISM
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 5W / Isolated Module DC DC Converter 2 Output 12V -12V 210mA, 210mA 4.5V - 13.2V Input
Datasheet	TDN 5-0922WISM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	13.2V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	210mA, 210mA
Power (Watts)	5 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 75°C (With Derating)
Efficiency	83%
Mounting	Surface Mount
Case / Package	7-SMD Module, 6 Leads
Size / Dimension	0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Approval Agency	UL
Standard Number	60950-1; 62368-1
Base Product Number	TDN 5
RoHS Status	ROHS3 Compliant
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TDN5-0922WISM,TDN 5-0922WISM-ND
Standard Package	10
Win Source Part Number	1335497-TDN 5-0922WISM
Ultra Librarian 3D Model	Ultra Librarian TDN 5-0922WISM CAD Model

Alternative Products

Description

The TDN 5-0922WISM is a Traco Power manufactured electronic component.

Type: Power supply board mount DC DC converter
Size: 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Features: Remote on/off and SCP
Efficiency: 83%
ROHS3 Compliant: Yes
Applications: ITE (Commercial)
