Same model may have multiple batches, images only for reference.

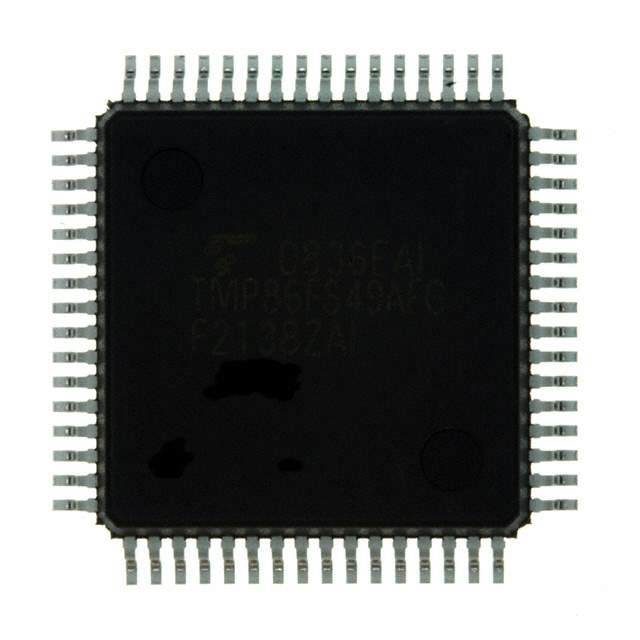

TMP86FS49BFG(ZHZ) Real Image
Same model may have multiple batches, images only for reference.

TMP86FS49BFG(ZHZ)

Part No TMP86FS49BFG(ZHZ)
Manufacturer Toshiba Semiconductor and Storage
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 60KB FLASH 64QFP
Datasheet
TMP86FS49BFG(ZHZ) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Toshiba Semiconductor and Storage
Packaging Tray
Status Active
Core Processor 870/C
Part Core Size 8-Bit
Speed(Frequency) 16MHz
Number of I/O 56
Program Memory Size 60KB (60K x 8)
Program Memory Type FLASH
Data RAM Size 2K x 8
Supply Voltage - Operating 2.7 V to 5.5 V
Data Converters A/D 16x10b
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 64-QFP (14x14)
Win Source Part Number 1110086-TMP86FS49BFG(ZHZ)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TMP86FS49BFG(ZHZ) CAD Model

Description

The Toshiba Semiconductor and Storage 870/C core processor is a high-performance integrated circuit that is designed to meet the demands of modern electronic devices.

  • Manufacturer: Toshiba Semiconductor and Storage
  • Processor Type: 870/C core
  • Number of I/O Pins: 56
  • Program Memory Size: 60KB (60K x 8)
  • Program Memory Type: FLASH
  • Data Converters: A/D 16x10b
  • Data RAM Size: 2K x 8
  • Speed: 16MHz
  • Supply Voltage: 2.7 V to 5.5 V
  • Package: 64-QFP (14x14)
  • Temperature Range: -40°C to 85°C (TA)
  • Supply and Demand Status: Balanced
