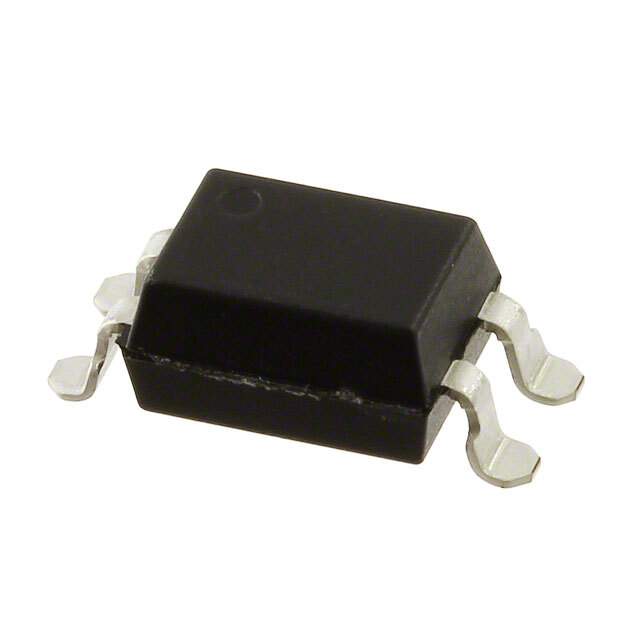

The TLP785(GB-TP6F is a Photocoupler manufactured by Toshiba Semiconductor and Storage. It is designed for electrical isolation between input and output circuits, offering high isolation voltage and reliable signal transmission.

Applications:

• Programmable Logic Controllers (PLCs)
• Inverter circuits
• AC/DC power supplies
• I/O interfaces for microcontrollers
• Noise suppression in signal lines
• General-purpose isolation

Features:

• High Isolation Voltage: Provides strong electrical isolation between input and output.
• High Collector-Emitter Voltage: Suitable for a wide range of applications.
• Current Transfer Ratio (CTR): Ensures efficient signal transfer.
• Compact Package: Space-saving design for high-density mounting.
• RoHS Compliant: Meets environmental safety standards.

Benefits:

• Electrical Isolation: Protects sensitive circuits from high voltages.
• Noise Immunity: Reduces the effects of electrical noise.
• Signal Integrity: Ensures reliable signal transmission.
• Compact Design: Saves valuable board space.
• Simplified Circuit Design: Easier implementation of isolation requirements.

Technical Specifications:

While detailed specifications necessitate reviewing the official Toshiba Semiconductor and Storage datasheet for the TLP785(GB-TP6F, typical characteristics for this type of Photocoupler include:

• Isolation Voltage (Viso): High, typically 3750Vrms or higher
• Collector-Emitter Voltage (VCEO): Typically 80V
• Current Transfer Ratio (CTR): Varies, but typically specified at a given input current
• Forward Current (IF): Typically 20mA
• Operating Temperature Range: Typically -55°C to +100°C

For precise electrical parameters, package dimensions, and recommended operating conditions, refer to the official datasheet from Toshiba Semiconductor and Storage.
