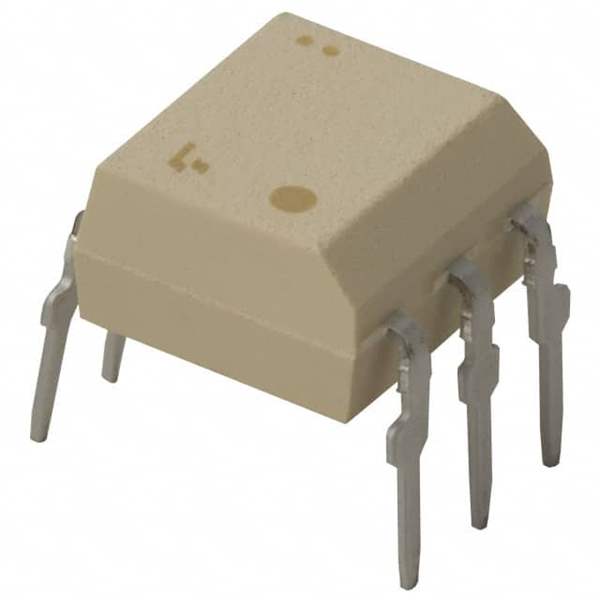

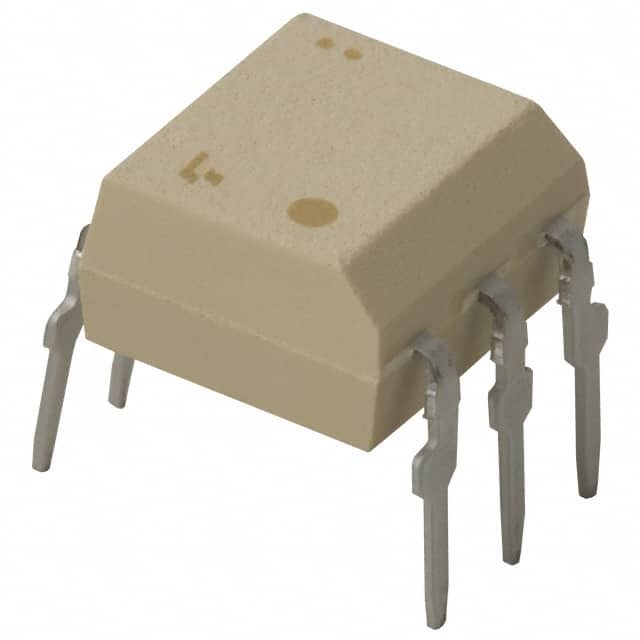

TLP598GAF Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP598GAF

Part No TLP598GAF
Manufacturer Toshiba Semiconductor and Storage
Catalog Solid State Relays
Description SSR RELAY SPST-NO 150MA 0-400V / Solid State SPST-NO (1 Form A) 6-DIP (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr Toshiba Semiconductor and Storage
Series TLP598GA
Package Tube
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.33VDC
Voltage - Load 0 V ~ 400 V
Load Current 150 mA
On-State Resistance (Max) 12 Ohms
Termination Style PC Pin
Package / Case 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Base Product Number TLP598
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0030
Standard Package 50
Win Source Part Number 1100011-TLP598GAF
Ultra Librarian 3D Model Ultra Librarian TLP598GAF CAD Model

Description

The TLP598GA series solid state relay is a high-quality and reliable component that is manufactured by Toshiba Semiconductor and Storage.

  • Termination Style: PC Pin
  • Package: Tube
  • Circuit: Single-Pole, Single-Throw (SPST-NO)
  • Load Current: Up to 150mA
  • Voltage Input: 1.33VDC
  • Output Signal: AC and DC
  • On-State Resistance: 12 Ohms
  • Voltage Load: 0V to 400V
  • Category: Relays
  • ECCN: EAR99
  • HTSUS: 8536.41.0030
