Same model may have multiple batches, images only for reference.

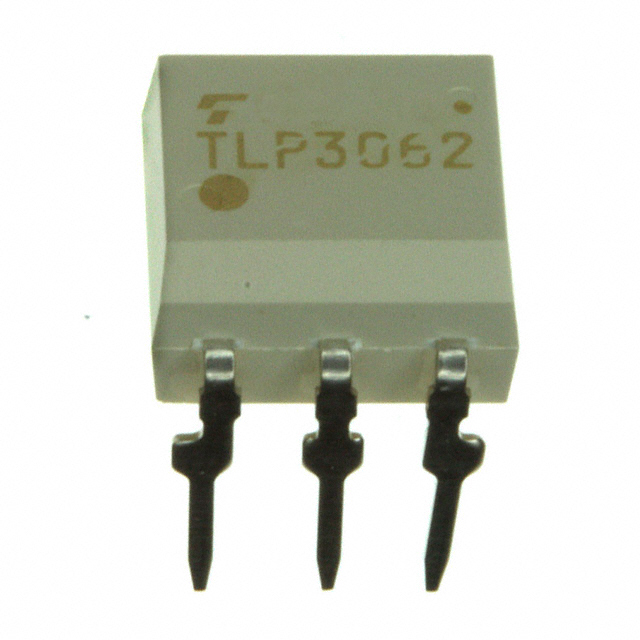

TLP3062 Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP3062

Part No TLP3062
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6DIP 5L
Datasheet
TLP3062 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Tube/Rail
Status Active
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 600V
Static dV/dt (Min) 200V/μs
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 600μA (Typ)
Forward Voltage 1.15V
Continuous forward current- Max 50mA
Temperature Range - Operating -40°C to 100°C
Mounting Through Hole
Case / Package 6-DIP (Cut), 5 Lead
Approvals BSI, SEMKO, UR
Win Source Part Number 218189-TLP3062
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TLP3062 CAD Model

Description

Toshiba Semiconductor and Storage TLP3062 is a triac output type isolator that has a voltage rating of 600V and a current rating of 100mA.

  • Voltage: 600V
  • Current: 100mA
  • Zero-Crossing Circuit: Yes
  • Static dV/dt (Min): 200V/μs
  • Output Channel: 1
  • Mounting: Through-Hole
  • Case / Package: 6-DIP (Cut), 5 Lead
  • Isolation Voltage: 5000Vrms
  • Continuous Forward Current- Max: 50mA
  • Approvals: BSI, SEMKO, and UR
  • Temperature Range: -40°C to 100°C
