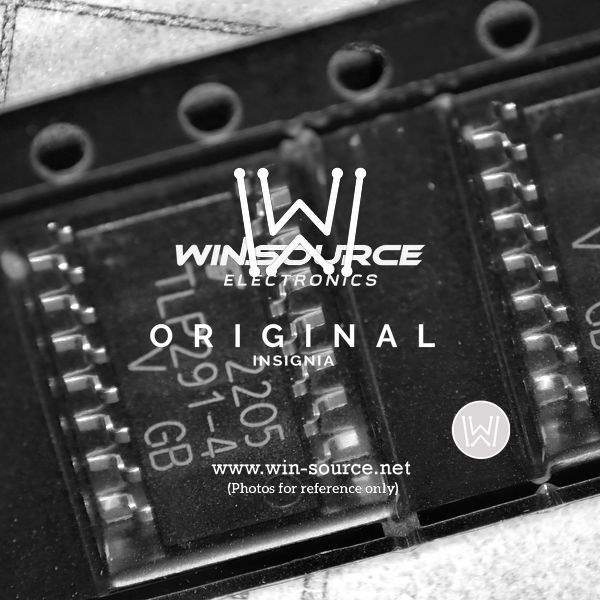

The TLP291-4(V4GBTPE) is a quad-channel phototransistor optocoupler manufactured by Toshiba Semiconductor and Storage. This device provides high isolation between input and output circuits, making it suitable for a wide range of applications where electrical isolation and noise immunity are critical.

Applications:

• Digital Logic Isolation: Used for isolating digital logic circuits in industrial control systems, PLCs, and microcontrollers.
• Power Supply Isolation: Employed in power supplies to isolate the primary and secondary sides, ensuring safety and preventing ground loops.
• Motor Control: Integrated into motor control circuits to isolate control signals from high-voltage motor drive circuitry.
• Instrumentation Amplifiers: Utilized in instrumentation amplifiers to isolate sensitive measurement circuits from noisy environments.
• Data Acquisition Systems: Found in data acquisition systems to isolate analog and digital signals, improving accuracy and reducing noise.

Features:

• Quad-Channel Configuration: Provides four independent isolation channels in a single package.
• High Isolation Voltage: Offers high isolation voltage between input and output for enhanced safety.
• Compact Package: Space-saving design allows for integration into densely populated PCBs.
• High Current Transfer Ratio (CTR): Ensures efficient signal transmission between input and output.
• RoHS Compliant: Complies with RoHS standards, reducing hazardous substances.

Benefits:

• Enhanced Safety: High isolation voltage provides a safety barrier between circuits, protecting sensitive components and users.
• Space Savings: Quad-channel configuration reduces the number of components required, saving valuable board space.
• Efficient Signal Transmission: High CTR ensures reliable signal transfer with minimal power loss.
• Improved Noise Immunity: Electrical isolation reduces noise and interference, improving signal integrity.
• Simplified Circuit Design: Integrated design simplifies circuit layout and reduces the need for external components.

Additional Details:

The TLP291-4(V4GBTPE) features a typical isolation voltage of 5000 Vrms. The current transfer ratio (CTR) varies depending on the specific grade but generally falls within a range that ensures reliable signal transmission. Each channel consists of an infrared LED and a phototransistor. This optocoupler is designed for through-hole mounting and operates within a specified temperature range, ensuring stable performance in various environments. It is commonly used where multiple isolation channels are needed in a compact form factor.
