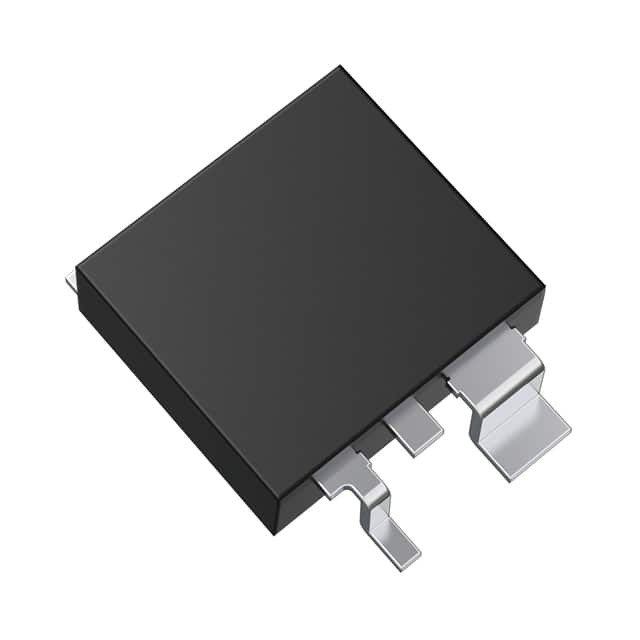

TK60F10N1L,LXGQ

Get a Quote

Part No	TK60F10N1L,LXGQ
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 100V 60A TO220SM / N-Channel 100 V 60A (Ta) 205W (Tc) Surface Mount TO-220SM(W)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Toshiba Semiconductor and Storage
Series	U-MOSVIII-H
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	60A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	6.11mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	3.5V @ 500µA
Gate Charge (Qg) (Max) @ Vgs	60 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4320 pF @ 10 V
Power Dissipation (Max)	205W (Tc)
Temperature Range - Operating	175°C
Mounting	SMD (SMT)
Supplier Device Package	TO-220SM(W)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Base Product Number	TK60F10
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	264-TK60F10N1LLXGQDKR,264-TK60F10N1LLXGQCT,264-TK60F10N1LLXGQTR,TK60F10N1L,LXGQ(O
Standard Package	1,000
Win Source Part Number	1099420-TK60F10N1L,LXGQ
Ultra Librarian 3D Model	Ultra Librarian TK60F10N1L,LXGQ CAD Model

Alternative Products

Description

The electronic component with Id 999246 is a N-Channel MOSFET transistor that belongs to the U-MOSVIII-H series.

Package Type: Tape & Reel
Standard Package: 1,000 units
Maximum Drain to Source Voltage (Vdss): 100V
Continuous Drain Current (Id) @ 25°C: 60A (Ta)
Rds On (Max) @ Id, Vgs: 6.11mOhm @ 30A, 10V
Vgs(th) (Max) @ Id: 3.5V @ 500μA
Power Dissipation (Max): 205W (Tc)
Package/Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package: TO-220SM(W)
Gate Charge (Qg) (Max) @ Vgs: 60 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 4320 pF @ 10 V
Maximum Vgs: ±20V
Operating Temperature Range: 175°C
