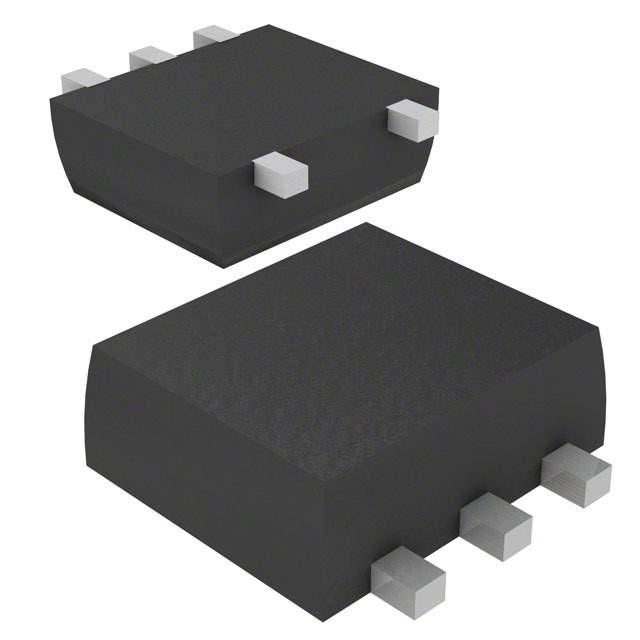

The TCS10SPU is a common-mode filter designed for USB 2.0 and other high-speed differential interfaces. Manufactured by Toshiba Semiconductor and Storage, it effectively suppresses common-mode noise while maintaining the signal integrity of the differential signals. This filter is crucial in reducing electromagnetic interference (EMI) and ensuring compliance with EMC regulations.

Applications:

• USB 2.0 interfaces
• IEEE1394 interfaces
• LVDS interfaces
• HDMI interfaces
• DisplayPort interfaces

Features:

• High common-mode attenuation
• Low differential-mode insertion loss
• Small package size (0603)
• High ESD protection

Benefits:

• Reduced EMI emissions, leading to improved system performance and reliability
• Maintained signal integrity due to low differential-mode insertion loss
• Space-saving design due to the small 0603 package size
• Enhanced system protection against electrostatic discharge
• Compliant with USB 2.0 specifications

Additional Details:

The TCS10SPU offers a common-mode attenuation of typically -20dB at 300MHz and a differential-mode insertion loss of typically -0.5dB at 480MHz. Its ESD protection is rated at ±8kV (contact discharge) according to IEC 61000-4-2. The small 0603 package facilitates easy integration into compact electronic devices. This filter is an essential component in applications where signal integrity and EMI compliance are critical.
