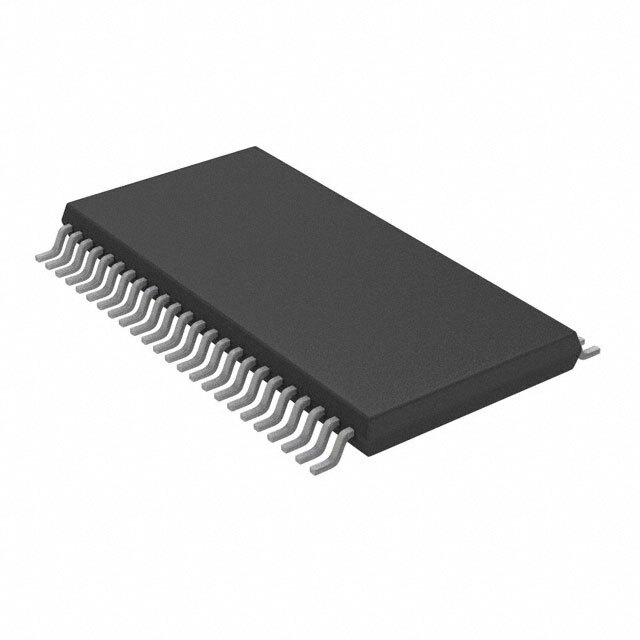

TB62214AFNG,C8,EL Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TB62214AFNG,C8,EL

Part No TB62214AFNG,C8,EL
Manufacturer Toshiba Semiconductor and Storage
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER BIPOLAR 48HTSSOP / Bipolar Motor Driver DMOS Parallel 48-HTSSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr Toshiba Semiconductor and Storage
Package Tape & Reel
Motor Type - Stepper Bipolar
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Parallel
Technology DMOS
Step Resolution 1, 1/2, 1/4
Applications General Purpose
Current - Output 2A
Voltage - Supply 4.75V ~ 5.25V
Voltage - Load 10V ~ 38V
Temperature Range - Operating -20°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case 48-TFSOP (0.240", 6.10mm Width) Exposed Pad
Supplier Device Package 48-HTSSOP
Base Product Number TB62214
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Other Names TB62214AFNG(OC8,EL,TB62214AFNG(OC8ELTR-ND,TB62214AFNGOC8EL,TB62214AFNG(OC8ELDKR,TB62214AFNGC8ELTR,TB62214AFNG(OC8ELCT-ND,TB62214AFNG(OC8ELCT,TB62214AFNG(OC8ELTR,TB62214AFNGC8ELCT,TB62214AFNG(OC8ELDKR-ND,TB62214AFNGC8ELDKR
Standard Package 1,000
Win Source Part Number 1131719-TB62214AFNG,C8,EL
Ultra Librarian 3D Model Ultra Librarian TB62214AFNG,C8,EL CAD Model

Description

The TB62214AFNG is a DMOS fully integrated driver that comes with control and power stage. This driver is suitable for general purpose applications and is designed to operate in a temperature range of -20°C to 150°C.

  • Type: DMOS Fully Integrated Driver
  • Application: General Purpose
  • Operating Temperature: -20°C to 150°C
  • Interface: Parallel
  • Output Configuration: Half Bridge
  • Load Voltage: 10V to 38V
  • Motor Type: Bipolar Stepper Motor
  • Step Resolution: 1, 1/2, and 1/4
  • Supply Voltage: 4.75V to 5.25V
  • Current Output: 2A
  • Package/Case: 48-TFSOP (0.240", 6.10mm Width) Exposed Pad
  • Supplier Device Package: 48-HTSSOP
