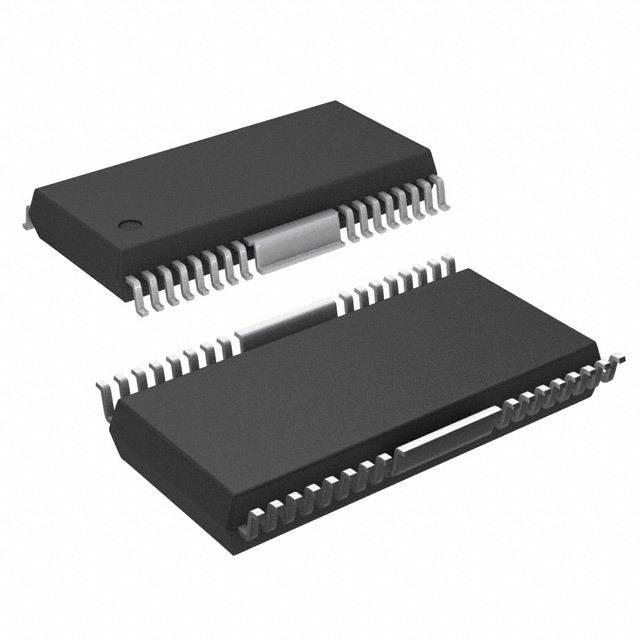

TB62214AFG(O,C8,EL Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TB62214AFG(O,C8,EL

Part No TB62214AFG(O,C8,EL
Manufacturer Toshiba Semiconductor and Storage
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 28HSOP
Datasheet
TB62214AFG(O,C8,EL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel package
Motor Type - Stepper Bipolar
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Parallel
Technology DMOS
Step Resolution 1, 1/2, 1/4
Applications General
Output Current 2A
Operating Supply Voltage 4.75 V ~ 5.25 V
Voltage - Load 10 V ~ 38 V
Operating Temperature Range -20°C ~ 150°C (TJ)
Mounting SMD
Package 28-BSOP (0.346", 8.80mm) + 2 Heat Tabs
Manufacturer Package 28-HSOP
Win Source Part Number 796351-TB62214AFG(O,C8,EL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TB62214AFG(O,C8,EL CAD Model

Description

The Toshiba Semiconductor and Storage TB62214AFG(O,C8,EL) is a fully integrated driver from Toshiba Semiconductor and Storage.

  • Temperature Range: -20°C to 150°C (TJ)
  • Package: 28-BSOP (0.346", 8.80mm) + 2 Heat Tabs
  • Mounting: SMD
  • Operating Supply Voltage: 4.75 V ~ 5.25 V
  • Output Configuration: Half-bridge (4)
  • Motor Type: Bipolar stepper
  • Step Resolution: 1, 1/2, 1/4
  • Output Current: 2A
  • Voltage Load: 10V to 38V
  • Supply and Demand: Limited
