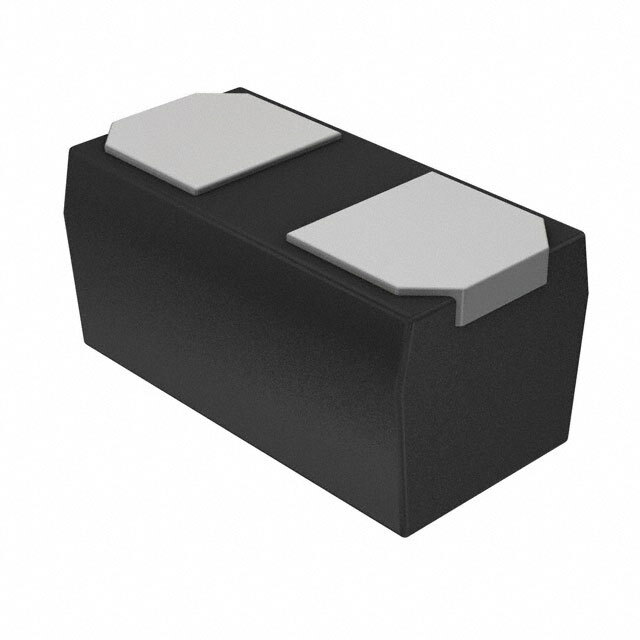

Same model may have multiple batches, images only for reference.

DSF01S30SL,L3F

Name: DSF01S30SL,L3F
Brand: Toshiba Semiconductor and Storage
SKU: 1056379
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DSF01S30SL,L3F
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 30V 100MA SL2 / Diode Schottky 30 V 100mA Surface Mount SL2
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr	Toshiba Semiconductor and Storage
Package	Tape & Reel
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30 V
Current - Average Rectified (Io)	100mA
Voltage - Forward (Vf) (Max) @ If	500 mV @ 100 mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	50 µA @ 30 V
Capacitance @ Vr, F	9.02pF @ 2V, 1MHz
Mounting	SMD (SMT)
Package / Case	2-SMD, No Lead
Supplier Device Package	SL2
Operating Temperature - Junction	125°C (Max)
Base Product Number	DSF01S30
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0070
Other Names	DSF01S30SL,L3F(B,DSF01S30SLL3F,DSF01S30SLL3FTR,DSF01S30SL,L3F(T,DSF01S30SLL3FDKR,DSF01S30SLL3FCT
Standard Package	10,000
Win Source Part Number	1056379-DSF01S30SL,L3F
Ultra Librarian 3D Model	Ultra Librarian DSF01S30SL,L3F CAD Model

Alternative Products

Description

The DSF01S30SL,L3F is a Schottky diode that is designed for use in a wide range of applications including power supplies, voltage clamping, and more from Toshiba Semiconductor and Storage.

Feature: Offers high reliability and low forward voltage drop.
Type: Small signal diode.
Maximum Reverse Voltage: 30V.
Forward Current: 100mA.
Supply and Demand Status: Balance.
