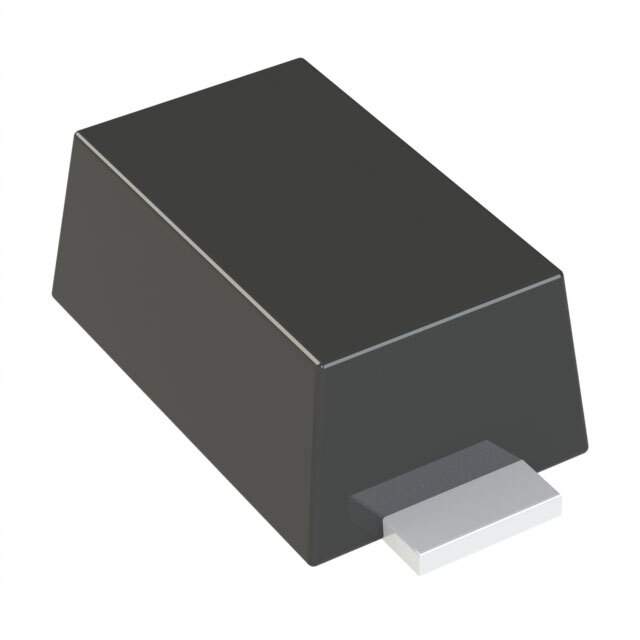

The CMS05(TE12L is a surface-mount Schottky barrier diode manufactured by Toshiba Semiconductor and Storage. Schottky diodes are characterized by their fast switching speed and low forward voltage drop compared to conventional diodes. The TE12L package indicates a specific surface-mount package style offered by Toshiba. This diode is commonly used in various electronic circuits for rectification, voltage clamping, and reverse polarity protection.

Applications:

• High-frequency rectification: Due to its fast switching speed, it's used in high-frequency power supplies and converters.
• Reverse polarity protection: Protects sensitive circuits from damage due to incorrect power supply polarity.
• Voltage clamping: Limits voltage spikes to protect downstream components.
• DC-DC converters: Used as a rectifier in DC-DC converter circuits.
• Sampling circuits: Used in sample and hold circuits due to its fast recovery time.

Features:

• Low forward voltage drop: Minimizes power loss and improves efficiency.
• Fast switching speed: Enables high-frequency operation.
• Surface-mount package: Facilitates automated assembly and compact designs.
• High surge current capability: Withstands transient current surges.
• Small package size: Saves board space.

Benefits:

• Improved efficiency: Reduces power consumption in electronic circuits.
• Enhanced circuit protection: Protects sensitive components from voltage spikes and reverse polarity.
• Compact design: Enables smaller and lighter electronic devices.
• Reliable operation: Provides stable performance in various operating conditions.
• Simplified assembly: Facilitates automated manufacturing processes.

Additional Details:

Typical specifications for a Schottky barrier diode like the CMS05(TE12L might include:

• Forward Voltage (VF): e.g., 0.3V at a specific forward current (IF).
• Maximum Reverse Voltage (VRRM): e.g., 30V.
• Maximum Forward Current (IF): e.g., 500mA.
• Reverse Recovery Time (Trr): A very low value, typically in the nanosecond range, indicating fast switching.
• Operating Temperature Range: e.g., -40°C to +125°C.

The specific electrical characteristics and package dimensions should be confirmed by consulting the official Toshiba datasheet for the CMS05(TE12L diode.
