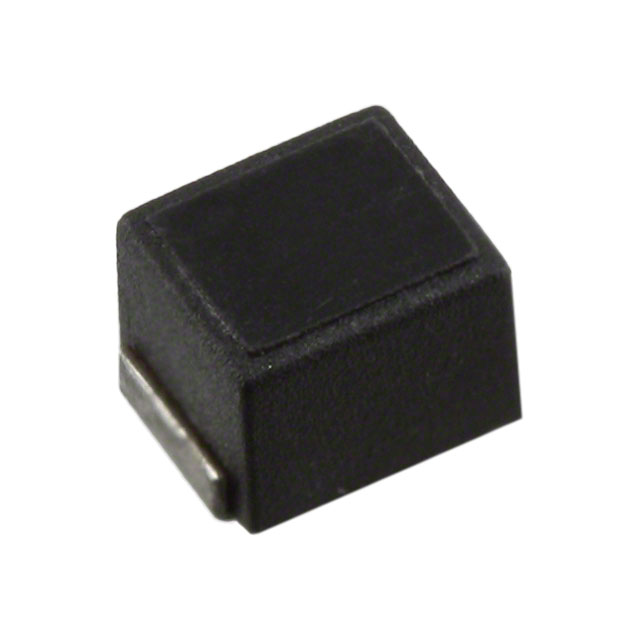

Same model may have multiple batches, images only for reference.
FSLM2520-R18J=P2 Toko America Inc.
Same model may have multiple batches, images only for reference.

FSLM2520-R18J=P2

Part No FSLM2520-R18J=P2
Manufacturer Toko America Inc.
Catalog Fixed Inductors
Description FIXED IND 180NH 460MA 290 MOHM
Datasheet
FSLM2520-R18J=P2 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Toko America Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Inductance 180nH
Tolerance ±5%
Current Rating 460mA
DC Resistance (DCR) 290 mOhm Max
Q @ Freq 30 @ 25.2MHz
Frequency - Self Resonant 520MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 25.2MHz
Mounting SMD (SMT)
Case / Package 1008 (2520 Metric)
Height - Seated (Max) 0.067" (1.70mm)
Win Source Part Number 005566-FSLM2520-R18J=P2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FSLM2520-R18J=P2 CAD Model

Description

The Toko America Inc. 005566-FSLM2520-R18J=P2 is a wirewound type inductor.

  • Maximum Current Rating: 460mA
  • Inductance: 180nH
  • Seated Height: 0.067 inches
  • Mounting Type: SMD (SMT)
  • Tolerance: ±5%
  • Q @ Freq: 30 @ 25.2MHz
  • Self-Resonant Frequency: 520MHz
  • Test Frequency: 25.2MHz
  • DC Resistance (DCR): 290 mOhm max
  • Operating Temperature: -40°C to 85°C

Part of the Inductors, Coils, Chokes category.
