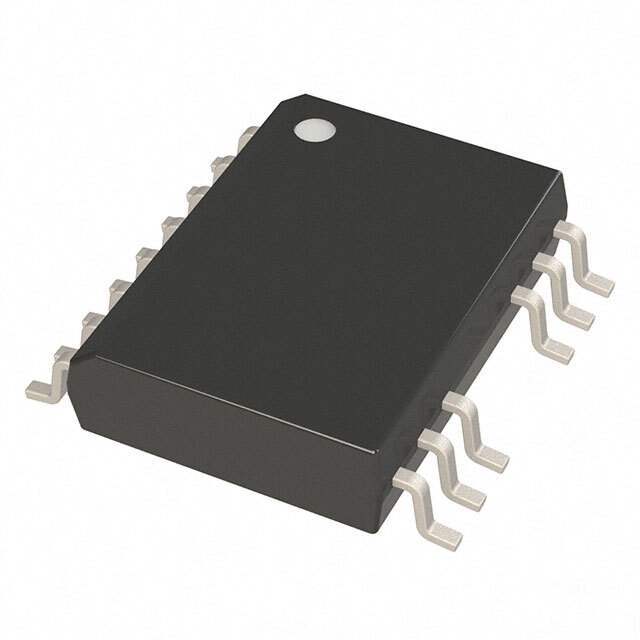

The UCC21540QDWKRQ1 is a robust, high-performance isolated dual-channel gate driver designed by Texas Instruments to cater to a wide range of power applications. This driver is specifically engineered to drive power MOSFETs, IGBTs, and SiC MOSFETs with optimal efficiency and reliability.

Key Features

• Isolation: The UCC21540QDWKRQ1 boasts a reinforced isolation of 5.7 kVRMS, compliant with UL1577 standards, providing excellent protection against high voltage transients and ensuring safe signal separation between the low-voltage and high-voltage domains.
• High Drive Strength: With peak source and sink current capabilities of +/-4 A and +/-6 A, respectively, this driver is capable of switching power devices swiftly, reducing switching losses, and improving overall system efficiency.
• Wide Range Input: It accepts a wide input voltage range from 3 V to 18 V, making it versatile for interfacing with various control ICs and microcontrollers.
• Robust Operation: The UCC21540QDWKRQ1 is designed for harsh environments with an extended temperature range of -40°C to +125°C, ensuring reliable performance in automotive and industrial applications.
• Proprietary SiC MOSFET Drive: The device includes Texas Instruments' proprietary negative voltage handling capability, which enhances the robustness of the gate drive under extreme switching conditions and reduces the risk of parasitic turn-on of SiC MOSFETs.

Applications

The UCC21540QDWKRQ1 is ideal for a multitude of applications, including but not limited to:

• Electric vehicle (EV) powertrain systems
• On-board chargers and DC/DC converters
• Renewable energy inverters
• Industrial motor drives and power supplies
• High-voltage power converters

Reliability and Safety

Enhanced with several protective features such as Under-Voltage Lockout (UVLO) for both primary and secondary sides, the UCC21540QDWKRQ1 ensures reliable operation under undervoltage conditions. Additionally, the device's CMTI (Common-Mode Transient Immunity) of 100 V/ns minimizes the risk of erroneous gate driver outputs in noisy environments, thus bolstering system integrity.

With its advanced technology and comprehensive design, the UCC21540QDWKRQ1 from Texas Instruments stands out as a top-tier solution for driving power switches in high-performance and safety-critical applications.
