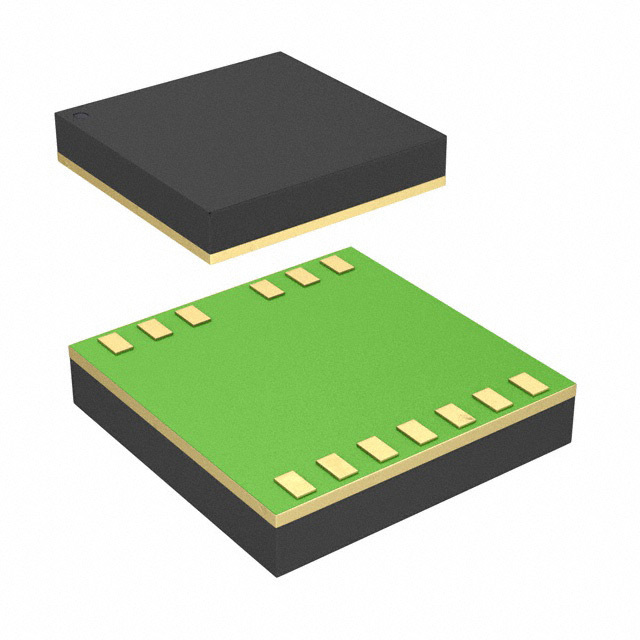

The UCC20225QNPLTQ1 from Texas Instruments is a state-of-the-art dual-channel isolated gate driver designed for driving power switches in a variety of applications. This robust component is specifically engineered to address the needs of automotive and industrial systems, providing reliable performance in environments that demand high isolation and low propagation delay.

Key Features

• Isolation Rating: The UCC20225QNPLTQ1 boasts a high isolation rating, ensuring safe operation even in high-voltage applications. This feature is critical for protecting control circuits from high-voltage transients.
• Dual-Channel: With two independent channels, this gate driver can control two different gates, making it versatile for driving half-bridge or full-bridge configurations.
• Robustness: Designed for the automotive market, it meets stringent AEC-Q100 qualification standards, ensuring reliability and performance under harsh conditions.
• Low Propagation Delay: The device's low propagation delay minimizes switching losses and improves power efficiency, which is essential for high-frequency switching applications.
• High Drive Strength: The UCC20225QNPLTQ1 can deliver high peak current to the gate of power transistors, ensuring fast and efficient switching.
• Wide Operating Temperature Range: It operates over a wide temperature range, making it suitable for automotive and industrial environments.

Applications

The UCC20225QNPLTQ1 is ideal for a range of applications where efficient and reliable gate control is essential. This includes but is not limited to:

• Electric and hybrid electric vehicles (EV/HEV)
• Motor drives and inverters
• Power supplies and converters
• Renewable energy systems, such as solar inverters and wind turbines

With its combination of high isolation, low propagation delay, and dual-channel operation, the UCC20225QNPLTQ1 is a powerful solution for modern power electronics, ensuring both safety and efficiency in demanding applications.
