Same model may have multiple batches, images only for reference.

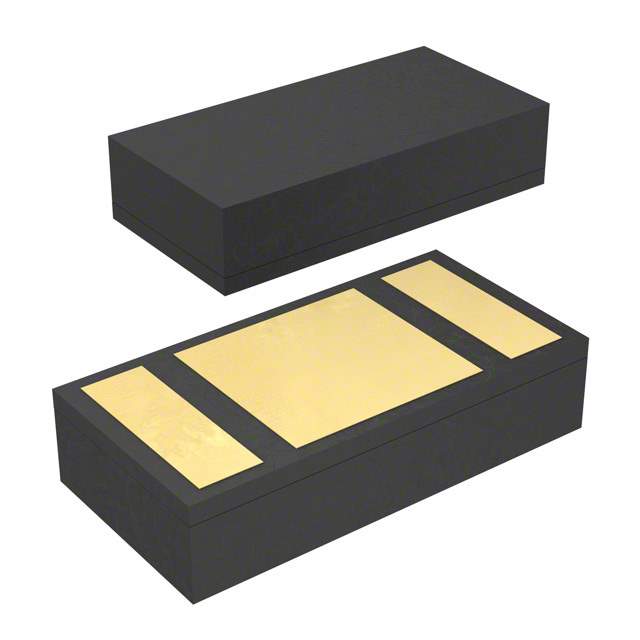

VMMK-3803-TR1G Real Image
Same model may have multiple batches, images only for reference.

VMMK-3803-TR1G

Part No VMMK-3803-TR1G
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC AMP LNA LOW NOISE SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 3GHz to 11GHz
P1dB 9dBm
Gain 20dB
Noise Figure 1.5dB
RF Type 802.16 WiMAX
Supply Voltage - Operating 3 V to 5 V
Operating Supply Current 20mA
Test Frequency 6GHz
Case / Package 0402
Win Source Part Number 1117309-VMMK-3803-TR1G
Family Name VMMK-3803
Introduction Date April 13, 2011
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian VMMK-3803-TR1G CAD Model

Description

The 1117309-VMMK-3803-TR1G is an electronic component manufactured by Broadcom Limited.

  • Category: RF/IF and RFID
  • Popularity: High
  • Supply and Demand Status: Balance
  • Test Frequency: 6GHz
  • Frequency Range: 3GHz to 11GHz
  • Gain: 20dB
  • Noise Figure: 1.5dB
  • P1dB: 9dBm
