Introducing the TVS2701DRBR by Texas Instruments

The TVS2701DRBR is a state-of-the-art transient voltage suppression (TVS) diode designed by Texas Instruments, a leader in semiconductor innovation. This robust component is specifically engineered to protect sensitive electronic circuits from voltage spikes and surges, ensuring reliability and longevity in a wide range of applications.

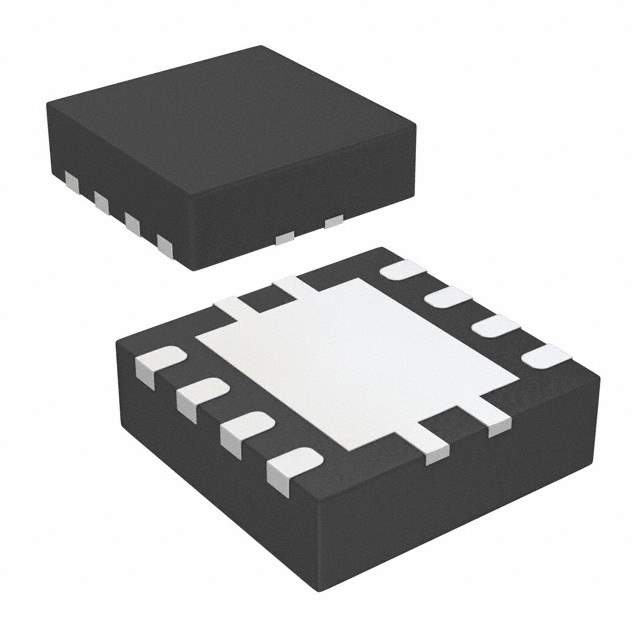

Encased in a compact, surface-mount SON-6 package, the TVS2701DRBR boasts an impressive array of features. It offers a standoff voltage of 24V, making it ideal for safeguarding 24V systems. Additionally, the device is capable of dissipating high transient power up to a peak pulse power of 600W (10/1000 µs), providing superior protection against electrical transients caused by lightning, load switch, and other high-energy disturbances.

One of the key attributes of the TVS2701DRBR is its low clamping voltage, which ensures that even when faced with a voltage spike, the voltage presented to the protected circuitry remains within safe limits. This characteristic is critical for the preservation of delicate components that might otherwise be damaged by excessive voltage levels.

The TVS2701DRBR also features a low leakage current, which minimizes power loss when the device is in standby mode, contributing to the energy efficiency of the overall system. The fast response time of the diode ensures that protection is immediate, reacting to over-voltage events in picoseconds, thereby safeguarding connected components with virtually no delay.

Designed to meet or exceed industry standards, the TVS2701DRBR is compliant with the IEC 61000-4-2 (ESD) standard, IEC 61000-4-4 (EFT), and IEC 61000-4-5 (Surge) immunity requirements. This compliance demonstrates Texas Instruments' commitment to providing components that are capable of withstanding harsh electrical environments while maintaining their performance.

In summary, the TVS2701DRBR is an excellent choice for engineers and designers looking to enhance the durability and reliability of their electronic systems. With its robust protection capabilities, energy efficiency, and adherence to stringent industry standards, this TVS diode from Texas Instruments represents a top-tier solution for safeguarding sensitive circuitry against voltage transients.
