The TVP5146M2PFP from Texas Instruments is a high-performance, low-power video decoder that captures and converts analog video signals into digital form. Designed to accommodate a wide range of video input formats, this versatile chip is an ideal solution for applications in video processing, surveillance systems, and multimedia devices.

Key Features

• Multi-Format Support: The TVP5146M2PFP supports a variety of analog inputs including NTSC, PAL, and SECAM. It can automatically detect the format of the input signal, ensuring compatibility with different global video standards.
• High-Quality Video Decoding: With its advanced 10-bit ADC and 5-line comb filter, the decoder delivers superior image quality, minimizing artifacts and providing clear, sharp video playback.
• Flexible Video Outputs: This decoder can output video in multiple digital formats, including 8/16-bit YCbCr 4:2:2, RGB565, and more, providing flexibility for interfacing with various display and processing systems.
• Macrovision Detection: It has built-in Macrovision copy protection detection, which is crucial for applications that need to comply with content protection regulations.

Applications

The TVP5146M2PFP is suited for a wide array of applications. Its ability to process various analog video formats makes it an excellent choice for:

• Digital video recorders (DVRs)
• Video surveillance systems
• Set-top boxes
• Video conferencing systems
• Car navigation and rear-view camera systems

Technical Specifications

The device comes in a 80-TQFP (PFP) package and operates over an industrial temperature range. It requires a single 1.8V power supply for the core and can tolerate 3.3V I/O, making it compatible with a variety of digital systems.

Ordering and Packaging

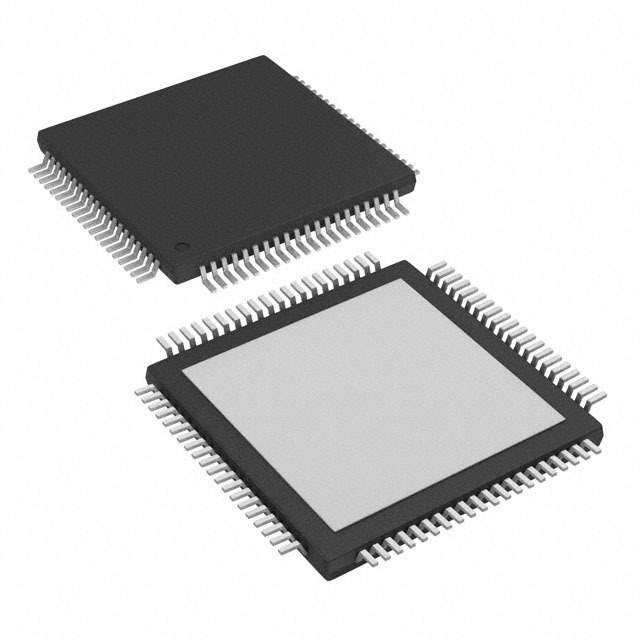

The TVP5146M2PFP is available in a 14 mm × 14 mm, 80-pin TQFP (PFP) package, which is suitable for surface mount technology (SMT) and is RoHS compliant. For ordering purposes, the complete product name is necessary to specify the package type and temperature range.
