The TUSB1046-DCIRNQR is a cutting-edge USB Type-C and USB Power Delivery (PD) controller integrated with a 10 Gbps linear redriver from Texas Instruments (TI). It is designed to enhance signal quality by performing equalization on deteriorated signals received and by pre-emphasizing the transmitted signals in systems that support USB 3.1 Gen 2 data rates and video resolutions up to 4K. This device is ideal for a wide range of applications such as laptops, desktops, monitors, docking stations, and other peripherals that require efficient data transfer and charging capabilities.

Key Features

• High-Speed Data Transfer: Supports USB 3.1 Gen 2 data rates up to 10 Gbps, ensuring rapid file transfers and efficient performance.
• Enhanced Signal Integrity: Integrated linear redriver improves signal quality for both upstream and downstream data paths.
• USB Type-C and PD Compatibility: Designed to work seamlessly with the latest USB Type-C connectors and supports USB Power Delivery for higher power charging.
• Video Support: Capable of handling video data for DisplayPort and HDMI alternate modes, supporting video resolutions up to 4K.
• Flexibility: Offers I2C control for redriver configuration, making it adaptable for various system requirements.

Applications

• Laptops and Ultrabooks
• Desktop Computers
• Monitors and Displays
• Docking Stations
• USB Hubs and Peripherals

Product Specifications

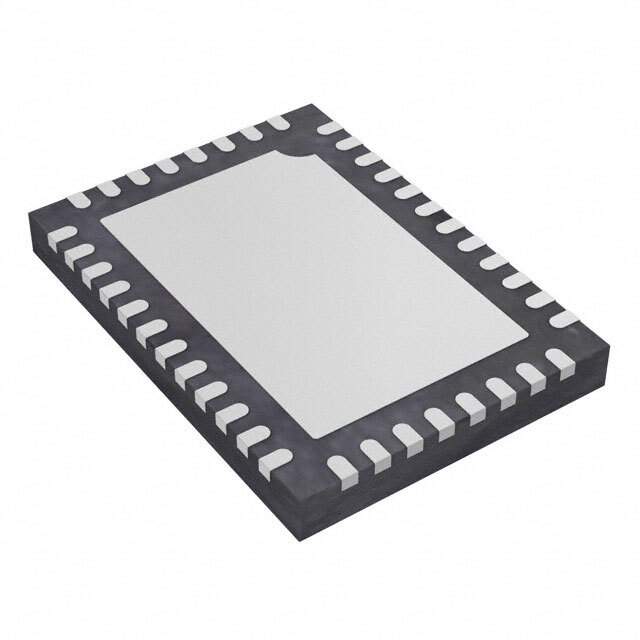

The TUSB1046-DCIRNQR is available in a compact QFN package, which is ideal for space-constrained applications. It operates over the industrial temperature range and is designed for a reliable performance in a variety of settings. With its robust design and advanced features, the TUSB1046-DCIRNQR by Texas Instruments is a versatile solution that meets the needs of high-speed data and video transfer in modern electronic devices.
